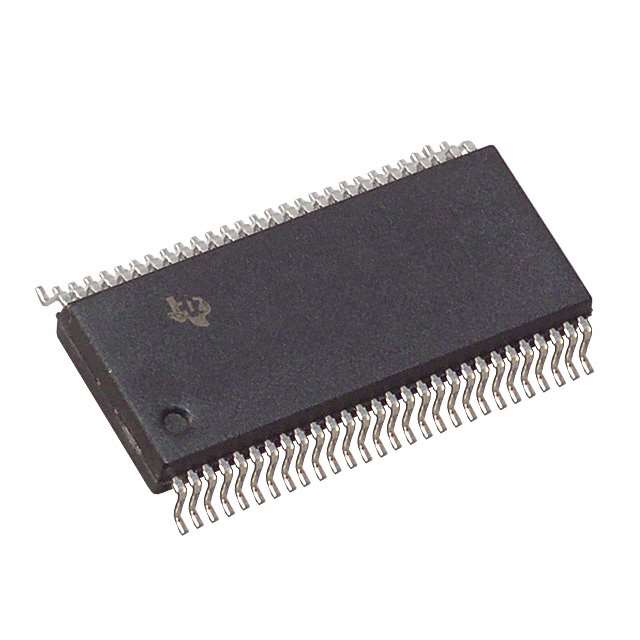

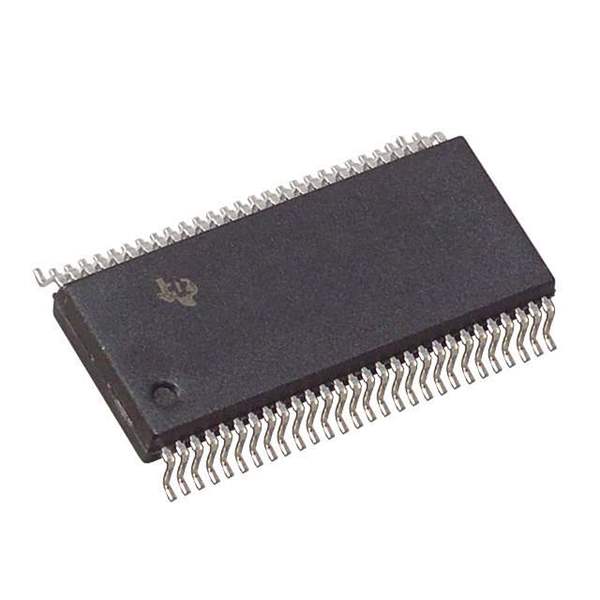

The SN74ALVCH16841DLR from Texas Instruments is a high-performance, 20-bit universal bus driver designed to meet the demands of high-speed data transmission systems. This integrated circuit is part of the advanced low-voltage CMOS family and offers both high drive and low static power consumption, making it an excellent choice for interfacing with bus lines in a bus-organized system.

Key Features

• Technology: The device utilizes Advanced Low-Voltage CMOS technology, which enables operation at a nominal voltage of 2.5V to 3.6V, providing compatibility with low-voltage systems while maintaining robust performance.
• Speed: The SN74ALVCH16841DLR is designed for high-speed operation, supporting data transfer rates that meet the requirements of modern digital systems.
• Drive Capability: With a 24-mA balanced output drive at 3.3V, this device can drive capacitive loads while maintaining signal integrity, making it suitable for driving long bus lines.
• Bus-Hold Data Inputs: The inclusion of bus-hold data inputs eliminates the need for external pull-up or pull-down resistors, simplifying board design and reducing component count.
• Output Enable (OE): The OE input allows the user to put the outputs into a high-impedance state, which is essential for multiplexing lines and preventing bus contention.
• Package: It is offered in a surface-mount, 56-pin SSOP (DLR) package, which is ideal for space-constrained applications.

Applications

The SN74ALVCH16841DLR is versatile and can be used in a variety of applications, including memory address driving, data transmission, and bus-oriented systems. It is particularly well-suited for use in servers, telecommunications, computing, and wherever high-speed, low-voltage operation is required.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN74ALVCH16841DLR is no exception. It is designed to meet stringent industry standards, ensuring reliable performance in a wide range of environmental conditions.
