Product Overview: SN74ALVCH16952DGG

The SN74ALVCH16952DGG from Texas Instruments is a high-performance, 16-bit registered transceiver that is part of the advanced low-voltage CMOS (ALVC) family. This integrated circuit is designed to provide bidirectional communication of data between two buses in a system. With its 3.3V operating voltage, it is particularly suitable for interfacing with 3.3V logic, while also providing 5V tolerant I/O ports, making it compatible with mixed-voltage environments.

Key Features:

• Voltage Range: Operates at a 2.5V to 3.6V VCC supply voltage, which is ideal for low-voltage applications.
• Interface: Bidirectional data flow is controlled via the direction and output-enable (OE) inputs, ensuring flexible control over data transmission.
• Speed: Provides high-speed data transfer with a maximum data rate that is characteristic of the ALVC family.
• Compatibility: 5V tolerant inputs and outputs allow for interfacing with 5V systems without the need for additional level shifting hardware.
• Bus Hold: Features bus hold on data inputs to eliminate the need for external pull-up/pull-down resistors, simplifying design and reducing board space.

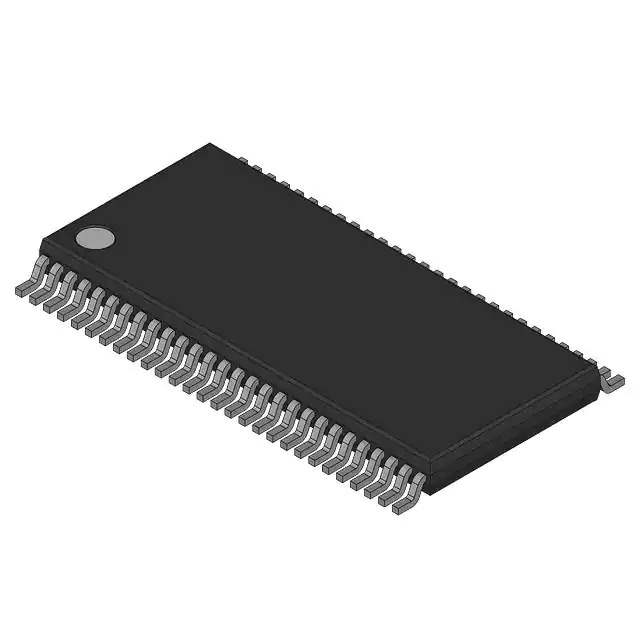

• Package: Housed in a 56-pin TSSOP (DGG) package, it offers a compact footprint suitable for space-constrained applications.

Applications:

The SN74ALVCH16952DGG is versatile and can be used in a variety of applications, including:

• Bus interface or signal buffering for microprocessors, microcontrollers, or other digital systems.
• Data communication in telecommunication and networking equipment.
• Level translation in multi-voltage systems or between peripherals and core logic.
• Memory interfacing, including support for synchronous DRAM.

Quality and Reliability:

Texas Instruments is known for its commitment to quality and reliability, and the SN74ALVCH16952DGG is no exception. It is manufactured to the highest standards and is designed to meet the rigorous demands of the modern electronic industry. With its advanced features and robust design, the SN74ALVCH16952DGG is an excellent choice for designers looking for a reliable and efficient solution for data transfer and communication.
