Product Overview: DS30EA101SQ/NOPB

The DS30EA101SQ/NOPB is a high-performance, adaptive equalizer from Texas Instruments designed to enhance the signal integrity of high-speed data channels. This device is particularly suitable for extending the reach and improving the performance of data transmission over cables, backplanes, and other media that may introduce losses and distortions to the signal path.

Key Features

• Adjustable Equalization: The DS30EA101SQ/NOPB features a continuous-time linear equalizer (CTLE) that provides adjustable equalization to compensate for the frequency-dependent attenuation of interconnects.
• High Data Rates: This device supports data rates up to 3.125 Gbps, making it ideal for a variety of high-speed data protocols and applications.
• Low Power Consumption: With its focus on efficiency, the DS30EA101SQ/NOPB maintains low power consumption, which is critical for high-density and power-sensitive applications.
• Signal Conditioning: The equalizer offers signal conditioning features that include input signal detection and programmable input equalization, allowing for optimization of performance based on specific channel conditions.
• Wide Operating Temperature Range: The device is designed to operate over an industrial temperature range, ensuring reliable performance in a variety of environmental conditions.

Applications

The DS30EA101SQ/NOPB is versatile and can be used in multiple applications where signal integrity is paramount. Some of these applications include:

• High-speed backplane and cable interconnects
• Telecommunications and data communications equipment
• Industrial control systems
• Video transmission systems
• Medical imaging equipment

Quality and Reliability

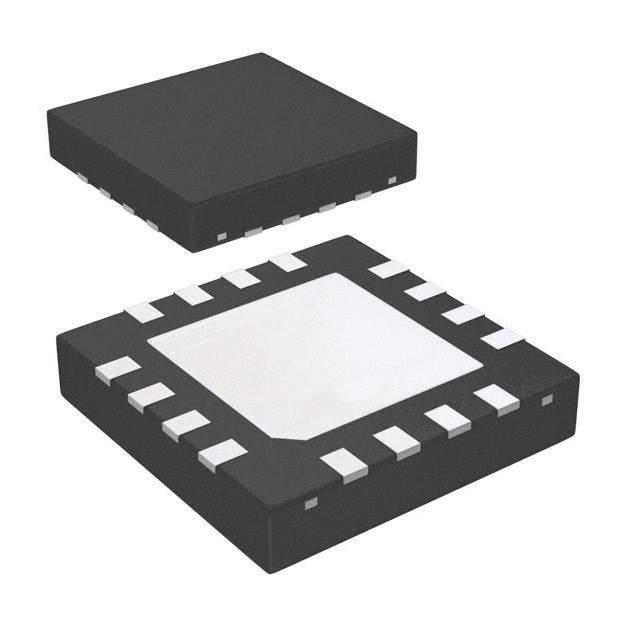

Texas Instruments is known for its commitment to quality, and the DS30EA101SQ/NOPB is no exception. It is available in a space-saving, 16-pin WQFN package and is characterized for operation from -40°C to 85°C. The device is also RoHS compliant and lead-free, ensuring it meets current environmental standards for electronic components.

With its advanced features and robust design, the DS30EA101SQ/NOPB is a powerful solution for system designers looking to overcome the challenges of high-speed data transmission and maintain signal integrity across various physical mediums.
