The SN74AUP1T34DCKR is a high-performance, single-bit, non-inverting level translator manufactured by Texas Instruments. This device is designed to meet the needs of modern electronics that require voltage level translation between different domains, such as interfacing between microcontrollers and peripherals with different voltage levels.

Key Features

• Low Power Consumption: The SN74AUP1T34DCKR operates with a very low static power consumption, making it ideal for battery-powered and power-sensitive applications.
• Wide Voltage Range: It supports a wide V<sub>CC operating range from 0.8V to 3.6V, allowing for flexible level translation between various low-voltage nodes.
• High-Speed Operation: This level translator is capable of high-speed operation, with a typical propagation delay of only 4.5 ns, ensuring minimal signal delay in high-speed signal paths.
• ESD Protection: The device includes robust ESD protection on all pins, safeguarding the device from electrostatic discharge events during handling and operation.
• Small Form Factor: Housed in a compact SC70 package, the SN74AUP1T34DCKR saves valuable board space in space-constrained applications.

Applications

The SN74AUP1T34DCKR is suitable for a variety of applications where voltage level translation is required. Common applications include:

• Mobile Phones
• Tablets
• Portable Electronics
• Microcontroller or Microprocessor I/O Expansion
• Sensor Interfaces

Quality and Reliability

As with all Texas Instruments products, the SN74AUP1T34DCKR is designed and manufactured with a focus on quality and reliability. It is subjected to rigorous testing and quality control measures to ensure that it meets the high standards expected of TI components.

Ordering Information

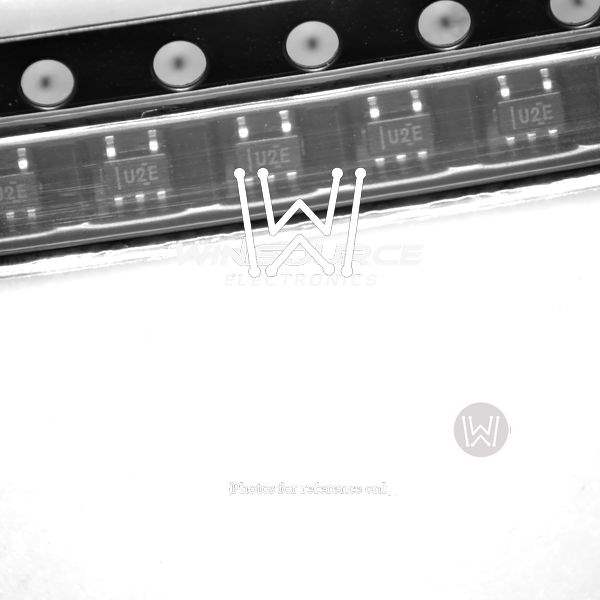

The SN74AUP1T34DCKR is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. For detailed ordering and shipping information, please consult the Texas Instruments website or contact your local TI sales representative.
