Product Overview: SN74CBT3257PWG4 from Texas Instruments

The SN74CBT3257PWG4 is a high-performance integrated circuit designed by Texas Instruments, a leader in semiconductor solutions. This device is a 4-bit 1-of-2 FET multiplexer/demultiplexer, which operates as a digital switch that can direct signals from a single input to one of the two outputs or vice versa.

Key Features

• Wide Operating Voltage Range: The SN74CBT3257PWG4 is designed to accommodate a broad range of power supplies, with an operating voltage ranging from 4.5 V to 5.5 V, making it suitable for interfacing with both TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) technologies.
• Low Power Consumption: This device is optimized for low power consumption, which is crucial for battery-powered and energy-efficient applications.
• High Bandwidth: It offers a bandwidth that is high enough to support various data transmission and signal routing applications, which is essential for maintaining signal integrity in high-speed digital systems.
• Bi-directional Functionality: The SN74CBT3257PWG4 can be used as a multiplexer or a demultiplexer, providing design flexibility and simplifying inventory management for manufacturers.
• Low On-State Resistance: The low on-state resistance of the switch ensures minimal signal distortion and voltage drop, which is vital for maintaining the quality of the signal being routed through the device.

Applications

The versatility of the SN74CBT3257PWG4 makes it an ideal choice for a wide array of applications, including:

• Signal gating
• Data routing
• Function selection in various electronic systems
• Communication systems
• Networking equipment
• Computer peripherals

Package and Quality

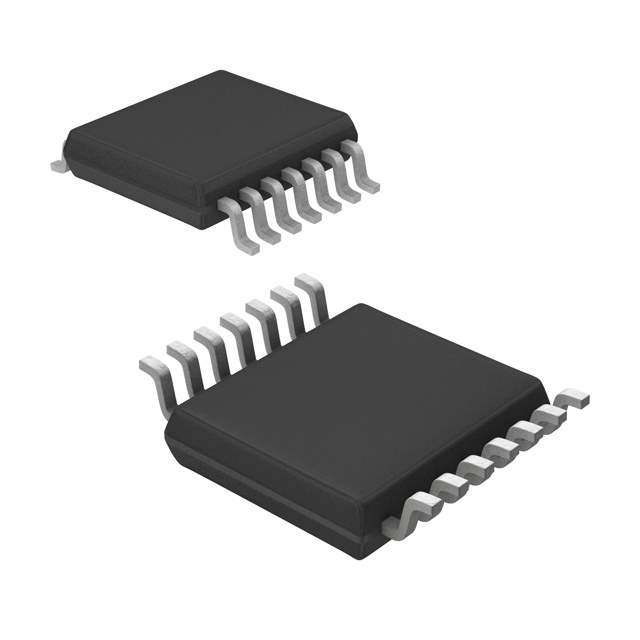

Housed in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, the SN74CBT3257PWG4 is designed for surface mount technology, enabling compact PCB (Printed Circuit Board) designs. Texas Instruments is known for its commitment to quality, and this product is no exception, adhering to stringent industry standards for reliability and performance.
