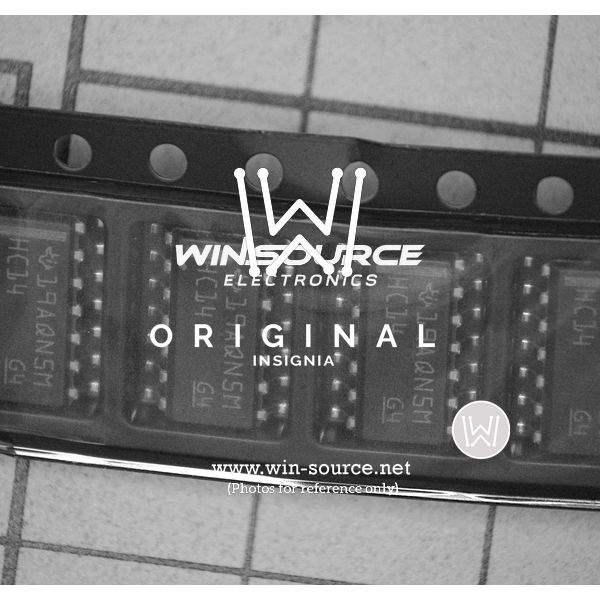

SN74HC14D Texas Instruments SN74HC14D Real Image SN74HC14D label picture SN74HC14D real image5977 SN74HC14D Real Image1 SN74HC14D Real Image2
Same model may have multiple batches, images only for reference.
SN74HC14D Texas Instruments SN74HC14D Real Image SN74HC14D label picture SN74HC14D real image5977 SN74HC14D Real Image1 SN74HC14D Real Image2
SN74HC14D Texas Instruments SN74HC14D Real Image SN74HC14D label picture SN74HC14D real image5977 SN74HC14D Real Image1 SN74HC14D Real Image2
Same model may have multiple batches, images only for reference.

SN74HC14D

Part No SN74HC14D
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC HEX SCHMITT-TRIG INV 14-SOIC
Datasheet
SN74HC14D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features Schmitt Trigger
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.3 V to 1.2 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 21ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOIC
Dimension 14-SOIC (0.154", 3.90mm Width)
Win Source Part Number 082299-SN74HC14D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Consumer Electronics, Power Management, Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian SN74HC14D CAD Model

Description

The SN74HC14D from Texas Instruments is a high-performance, integrated circuit designed to provide superior functionality in a variety of electronic applications.

  • Function: Hex inverting Schmitt trigger
  • Operating Voltage Range: 2V to 6V
  • Package: 14-pin SOIC package
  • Operating Temperature Range: from -40°C to 85°C
  • Technology: Advanced CMOS technology
