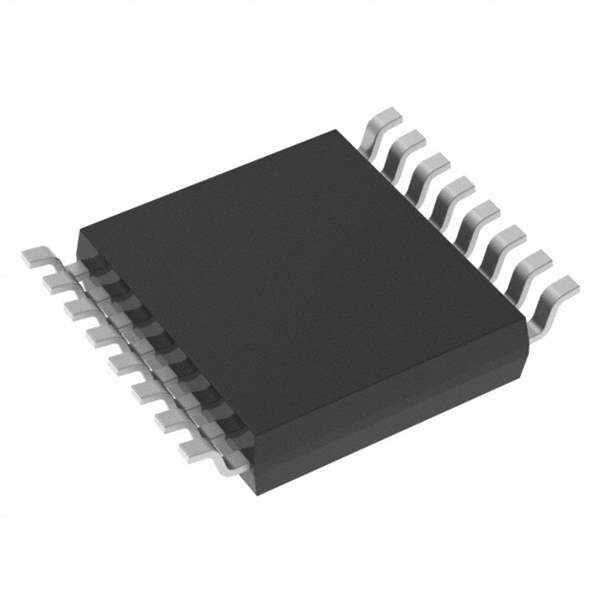

SN74HCS151PWR

Part No SN74HCS151PWR
Manufacturer Texas Instruments
Catalog Logic - Signal Switches, Multiplexers, Decoders
Description IC DATA SELECT/MUX 1X8:1 16TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Signal Switches, Multiplexers, Decoders
Mfr Texas Instruments
Series 74HCS
Package Tape & Reel
Product Status Active
Type Data Selector/Multiplexer
Independent Circuits 1
Current - Output High, Low 7.8mA, 7.8mA
Voltage Supply Source Single Supply
Voltage - Supply 2V ~ 6V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Base Product Number 74HCS151
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371220-SN74HCS151PWR
Ultra Librarian 3D Model Ultra Librarian SN74HCS151PWR CAD Model

Description

Product Overview: SN74HCS151PWR from Texas Instruments

The SN74HCS151PWR is a high-performance, 8-input digital multiplexer from Texas Instruments, designed to select one of eight data sources for output based on select inputs. This integrated circuit is part of the 74HCS family, which is known for its logic-level translation capabilities, allowing it to interface with 5V systems while being powered by a 2 V to 6 V supply. It is particularly suitable for implementing logic functions and is widely used in a variety of digital applications.

Key Features

  • Logic Family: The SN74HCS151PWR belongs to the 74HCS family, which is characterized by high speed and low power consumption.
  • Operating Voltage: This multiplexer operates within a wide voltage range of 2 V to 6 V, making it versatile for various logic-level applications.
  • Number of Circuits: It has a single 8:1 multiplexer circuit, providing an efficient solution for routing data from multiple inputs to a single output.
  • Output Type: The device features a 3-state output, which can be put in a high-impedance state, thus allowing for connection to a bus-structured system.
  • Pin Configuration: The SN74HCS151PWR comes in a TSSOP package with 16 pins, offering a compact footprint for space-constrained applications.
  • Propagation Delay: It boasts fast propagation delays, ensuring quick response times for critical digital switching applications.

Applications

The SN74HCS151PWR is a versatile component that can be used in a wide range of applications including, but not limited to:

  • Data multiplexing
  • Signal gating
  • Function generation
  • Logic implementation
  • Control systems
  • Communication systems

With its robust design and Texas Instruments' reputation for quality, the SN74HCS151PWR is a reliable choice for designers looking to perform data selection or multiplexing functions in their digital systems. Its ease of use and integration into existing circuits make it a go-to component for engineers seeking to optimize their designs with high-speed data handling capabilities.

Ordering Information

The SN74HCS151PWR is available in tape and reel packaging, facilitating efficient assembly during the manufacturing process. For detailed ordering and product information, it is recommended to consult the Texas Instruments datasheet and product documentation.
