The SN74HCS240QWRKSRQ1 from Texas Instruments is a high-performance, octal buffer and line driver designed to provide bidirectional drive currents of up to 24 mA at voltages from 4.5 V to 5.5 V. This device is part of the 74HCS family and features Schmitt-trigger action at all inputs, which makes the circuit highly tolerant to slower input rise and fall times.

Key Features

• Wide Operating Voltage Range: The SN74HCS240QWRKSRQ1 operates from 4.5 V to 5.5 V, making it suitable for a variety of automotive and industrial applications.
• High-Current Drive: This device can drive up to 24 mA, providing sufficient current for most applications requiring high drive strength.
• Schmitt-Trigger Inputs: With Schmitt-trigger inputs, this buffer and line driver ensures enhanced noise immunity and is capable of transforming slowly changing input signals into sharply defined jitter-free output signals.
• Octal Configuration: The 8-bit configuration allows for the simultaneous handling of 8 signals, making it ideal for data buses and signal buffering.
• Qualified for Automotive Applications: As a part of Texas Instruments' automotive-grade product line, this device meets the stringent requirements for automotive applications.
• Robustness: The device is designed to withstand electrostatic discharge (ESD) events, offering an ESD protection level of 2000 V Human Body Model (HBM).

Applications

The SN74HCS240QWRKSRQ1 is versatile and can be used in a wide range of applications, including:

• Automotive systems
• Industrial controls
• Motor drives
• Data acquisition systems
• Signal buffering and driving

Package and Quality

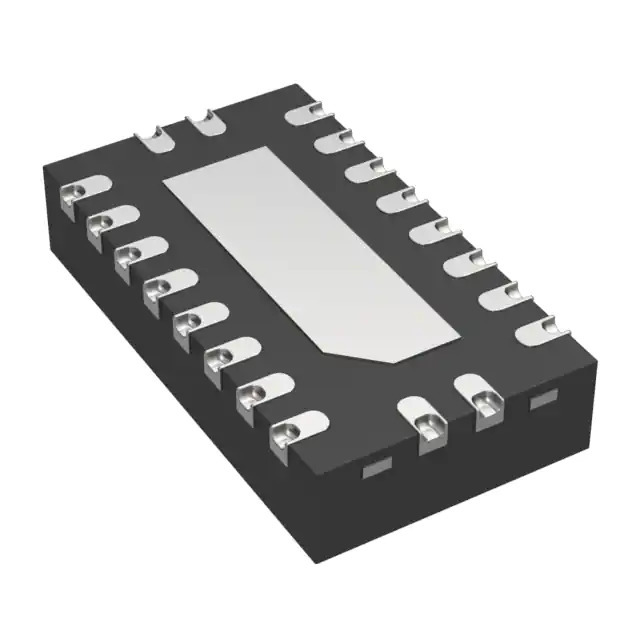

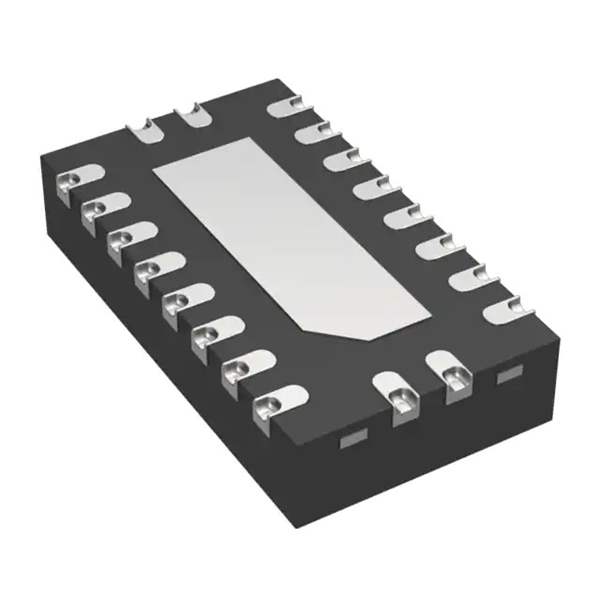

The SN74HCS240QWRKSRQ1 is offered in a wide-body, 20-pin QSOP (QWR) package, which is designed for space-saving and reliability in harsh environments. The device is also AEC-Q100 qualified, ensuring high standards of performance and reliability required for automotive-grade components.

With Texas Instruments' reputation for high-quality and reliable components, the SN74HCS240QWRKSRQ1 is an excellent choice for designers looking for a robust octal buffer/line driver for their automotive or industrial applications.
