The SN74HCS596PWR is a high-performance integrated circuit from Texas Instruments, renowned for its reliability and versatility in digital systems. This particular chip is a part of the 74HCS family, which is well-known for its high-speed CMOS logic operations. The SN74HCS596PWR is an 8-bit shift register with a 3-state output, designed for 2-V to 6-V VCC operation.

This device features a serial input (SER) and a parallel output (Q0 to Q7) that allows for the conversion of serial data to parallel data, making it an essential component in applications requiring data manipulation, storage, and transfer. The shift register is capable of operating in either a shift-left or shift-right mode, providing flexibility for various data processing needs. The 3-state outputs (Q0 to Q7) ensure that multiple registers can be connected in series, with the ability to control the flow of data efficiently.

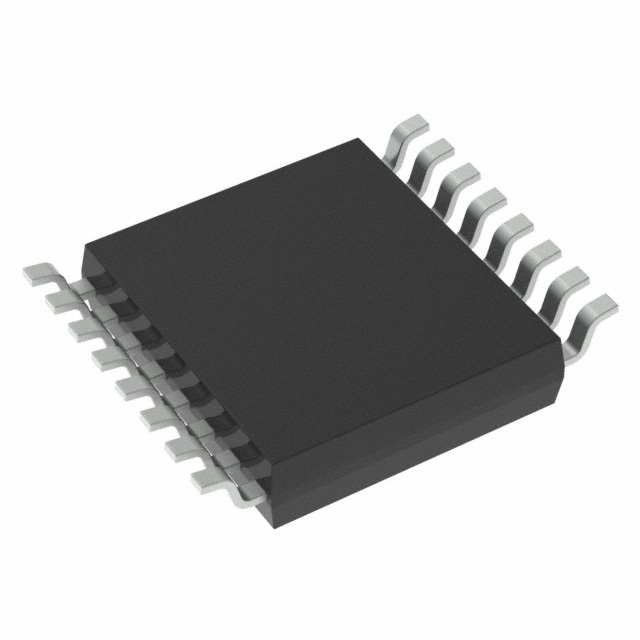

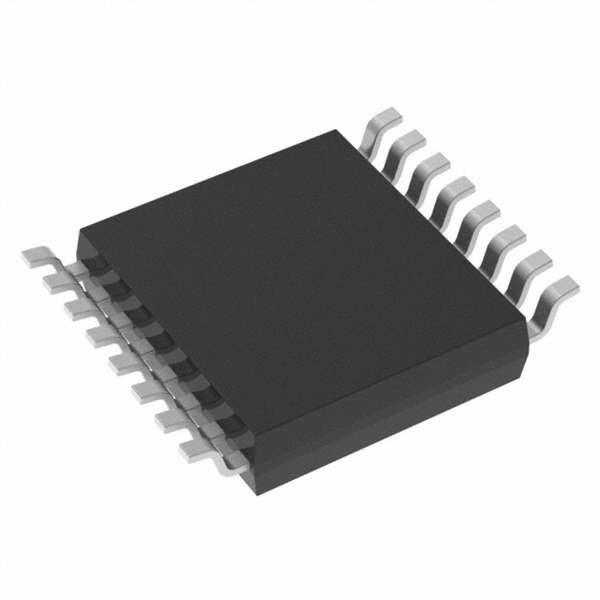

The SN74HCS596PWR is packaged in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, which provides a compact footprint suitable for space-constrained applications. The device is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

Key features of the SN74HCS596PWR include:

• 8-bit serial-in, parallel-out shift register
• Wide operating voltage range of 2 V to 6 V
• Direct overriding clear (CLR)
• Clock (CLK) input to control data shifting
• Output enable (OE) feature for controlling the output states
• Low power consumption for energy-efficient designs
• Edge-triggered functionality for precise control
• Compatible with TTL logic levels

This shift register is commonly used in microprocessor or microcontroller systems to expand the number of I/O ports, in LED displays for controlling individual LEDs, or in data acquisition systems for serial-to-parallel data conversion. Its robust design and advanced features make the SN74HCS596PWR an ideal choice for designers looking to implement efficient data handling capabilities in their electronic projects.

For detailed specifications and application guidance, designers should refer to the official Texas Instruments datasheets and product manuals.
