Product Overview: SN74LVC1G06YZTR by Texas Instruments

The SN74LVC1G06YZTR is a single inverter buffer/driver with open-drain output, designed by the renowned semiconductor company Texas Instruments (TI). This high-performance device is part of TI's advanced SN74LVC family, which is well-known for its low-voltage operation and compatibility with mixed-voltage systems. The device is specifically tailored to address the needs of modern, compact, and high-speed circuit designs.

Key Features

• Advanced Technology: Manufactured with an advanced CMOS technology, the SN74LVC1G06YZTR offers a robust solution for high-speed signal processing with minimal power consumption.
• Low Voltage Operation: It operates at a voltage range from 1.65V to 5.5V, which makes it suitable for interfacing with both 3.3V and 5V logic levels, providing designers with a versatile option for various applications.
• High Drive: The open-drain output allows for voltage level translation and can drive up to 5V, making it ideal for creating wired-OR logic gates.
• ESD Protection: The device includes input and output over-voltage tolerance and is equipped with high electrostatic discharge (ESD) protection, ensuring reliability and longevity in harsh electrical environments.

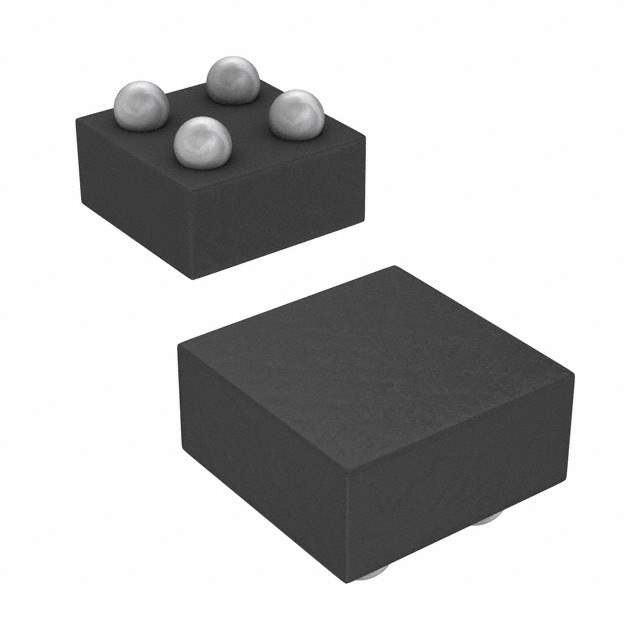

• Compact Packaging: Available in a tiny 5-land SOT-23 (YZ) package, the SN74LVC1G06YZTR is perfect for space-constrained applications, allowing for high-density PCB layouts.

Applications

The versatility and performance of the SN74LVC1G06YZTR make it a prime choice for a wide array of applications, including:

• Logic level shifting and signal inversion
• Interface circuitry between different voltage domains
• Wired-OR logic configurations
• Power management controls
• Portable and battery-powered electronics
• Consumer electronics, such as smartphones, tablets, and gaming consoles

With its combination of high-speed operation, low power consumption, and robust protection features, the SN74LVC1G06YZTR from Texas Instruments stands out as a reliable and efficient component for designers looking to optimize their digital logic applications.
