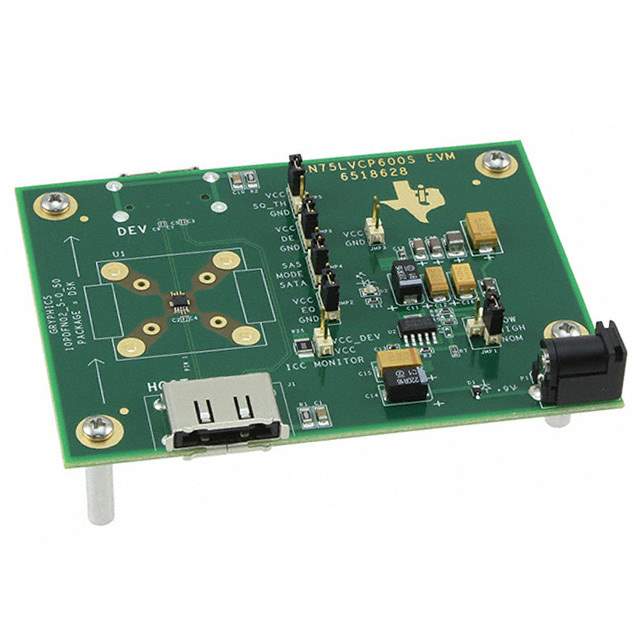

The SN75LVCP600SEVM from Texas Instruments is a high-performance evaluation module (EVM) designed for testing and evaluating the SN75LVCP600 Single Channel Retimer. This advanced piece of technology is specifically engineered to enhance signal integrity for high-speed data communication across a variety of platforms.

Key Features

• Signal Retiming: The EVM is built to support the retiming of signals to suppress jitter and maintain signal integrity over extended distances or through multiple connectors.
• High Data Rate: With support for data rates up to 6 Gbps, the SN75LVCP600SEVM is ideal for applications that require fast data transfer, such as SATA, SAS, and Fibre Channel interfaces.
• Flexibility: The evaluation module allows for easy experimentation with different settings and configurations, making it a versatile tool for designers and engineers.
• Ease of Use: It comes with a user-friendly interface and is equipped with standard connectors to facilitate quick setup and integration into existing systems.

Applications

The SN75LVCP600SEVM is suitable for a wide range of applications, including:

• Data centers and enterprise storage systems
• High-speed backplane and cable extenders
• Networking equipment and routers
• Professional video and broadcasting systems

Technical Specifications

• Single channel retimer with integrated signal conditioning
• Support for data rates up to 6 Gbps
• Low power consumption for energy-efficient operation
• Hot-plug capable for ease of maintenance
• Adjustable equalization and output swing settings

Package Contents

The SN75LVCP600SEVM package includes the evaluation board for the SN75LVCP600 retimer, a quick start guide, and additional documentation to assist in the evaluation and design-in process.

Additional Resources

For further information, Texas Instruments provides extensive technical documentation, application notes, and support resources to facilitate a seamless evaluation experience with the SN75LVCP600SEVM.
