SNJ54BCT245W Octal Bus Transceiver from Texas Instruments

The SNJ54BCT245W is a high-performance, octal bus transceiver from Texas Instruments, designed with state-of-the-art biCMOS technology. This integrated circuit is part of the BCT family of products, optimized for high-speed operation while maintaining the low power consumption that is characteristic of CMOS circuitry.

Key Features

• BiCMOS Technology: Combines the speed of bipolar transistors with the low power consumption of CMOS technology, ensuring efficient performance.
• Octal Bidirectional Data Flow: Eight bidirectional data lines allow for simultaneous two-way data transmission, enhancing data flow efficiency.
• 3-State Outputs: The outputs can be placed in a high-impedance state, allowing for multiple devices to connect to a single data bus without interference.
• Control Inputs: Includes DIR (Direction) and OE (Output Enable) control inputs, providing flexibility in controlling data transmission and output states.
• Wide Operating Temperature Range: The device is designed to operate reliably over a broad temperature range, making it suitable for industrial applications.
• Military Grade: As part of the SNJ series, this device meets military specifications, ensuring robust performance in demanding environments.

Applications

The SNJ54BCT245W is versatile and can be used in a variety of applications that require high-speed data transfer and bidirectional communication, such as:

• Data communication systems
• Telecommunications equipment
• Computers and computer peripherals
• Industrial control systems
• Networking equipment

Quality and Reliability

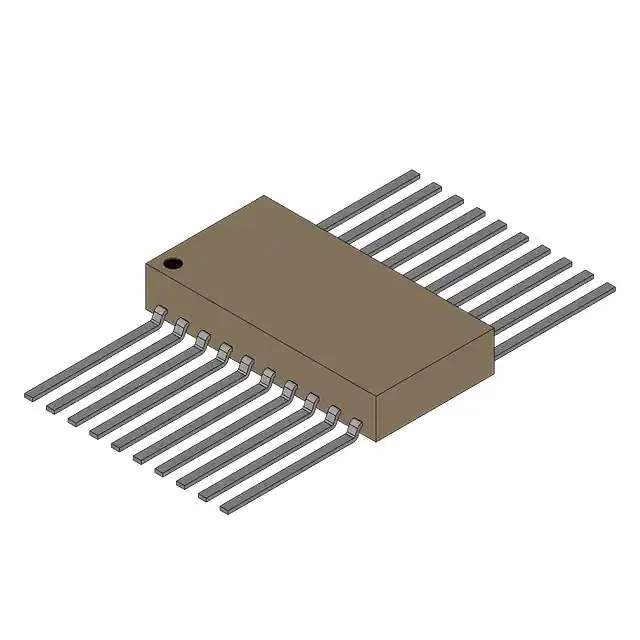

Texas Instruments is known for its commitment to quality, and the SNJ54BCT245W is no exception. It undergoes rigorous testing and validation to ensure it meets the high standards expected from TI products. The device is available in a ceramic package, which provides enhanced durability and performance stability.

Technical Specifications

Parameter Value Technology BiCMOS Number of Channels 8 Operating Temperature Range -55°C to 125°C Package Type Ceramic

For detailed product specifications and data sheets, visit the Texas Instruments official website or contact your local TI sales representative.
