The THS4522IPWR is a high-performance, low-power, fully-differential amplifier designed by Texas Instruments. This precision device is particularly suitable for driving analog-to-digital converters (ADCs) and buffering the outputs of digital-to-analog converters (DACs). Its design ensures minimal distortion and noise, making it an ideal choice for high-speed signal processing applications.

Key Features

• Fully-Differential Architecture: The THS4522IPWR offers a fully-differential signal path which enhances common-mode noise rejection and improves signal integrity, especially in environments with high interference.
• High Bandwidth: With a wide bandwidth of 145 MHz at a gain of +1, this amplifier can handle high-speed signals without significant attenuation, making it suitable for high-resolution data acquisition systems.
• Low Distortion: The device features very low harmonic distortion, ensuring that the signal integrity is maintained throughout the amplification process.
• Low Power Consumption: Despite its high performance, the THS4522IPWR is designed for low power consumption, with a typical supply current of only 1.9 mA per channel. This makes it suitable for battery-powered or energy-sensitive applications.
• Versatile Power Supply Range: It operates over a wide supply range of ±2.25 V to ±5.5 V, allowing for flexible integration into various system designs.
• Rail-to-Rail Output: The amplifier provides rail-to-rail output swing, which maximizes the dynamic range when interfacing with ADCs and DACs.

Applications

The THS4522IPWR is ideal for a range of applications, including:

• Test and measurement equipment
• Medical imaging systems
• Communications infrastructure
• Active filter blocks
• Professional audio equipment

Package and Quality

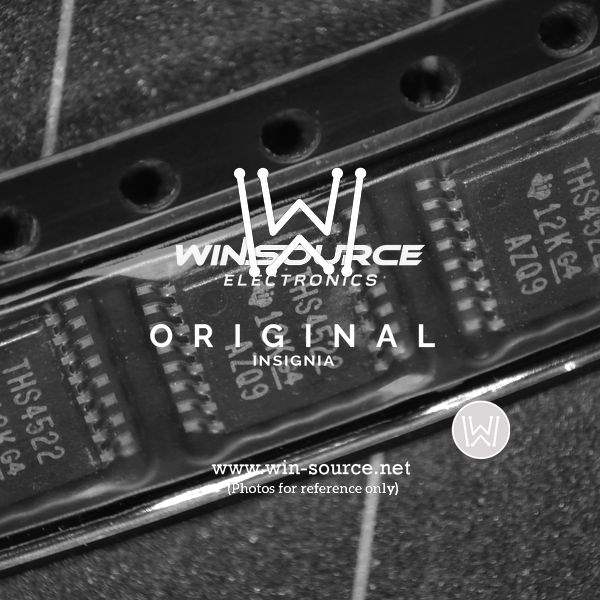

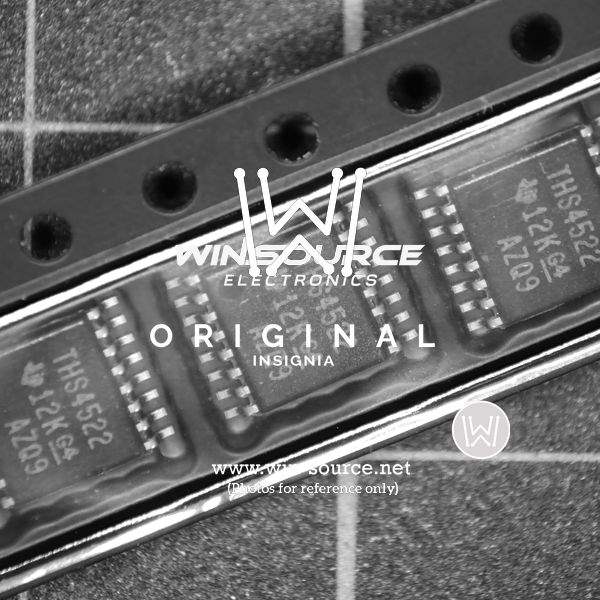

The device comes in a TSSOP-14 (Thin Shrink Small Outline Package) which provides a compact footprint while allowing for adequate thermal performance. Texas Instruments is known for its commitment to quality, and the THS4522IPWR is no exception. It is designed to meet stringent industry standards, ensuring reliability and performance in even the most demanding applications.
