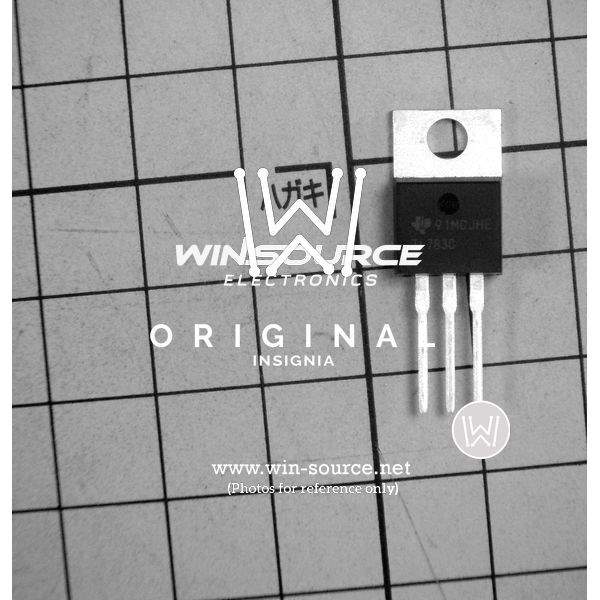

The TL783CKTTR from Texas Instruments is a high-performance, adjustable voltage regulator designed to cater to an array of applications requiring a high voltage solution. This device is capable of outputting a voltage ranging from 1.25 V to 125 V, making it an ideal choice for systems that demand a wide range of voltage adjustments.

Key Features

• Adjustable Output Voltage: Ranging from 1.25 V to 125 V, it provides a flexible solution for various high voltage applications.
• High Accuracy: Offers excellent regulation capabilities, ensuring a stable output voltage over different conditions.
• Output Current: Capable of delivering up to 700 mA of output current, making it suitable for a wide range of power needs.
• Thermal Protection: Incorporated with thermal shutdown and current limiting features to protect the device under abnormal operating conditions.
• Low Dropout Voltage: Ensures efficient operation even with a minimal difference between the input and output voltages.
• Package: Available in a small surface-mount package (TO-263), which is ideal for space-constrained applications.

Applications

The TL783CKTTR is versatile and can be used in various applications such as:

• High Voltage Power Supplies
• Instrumentation Systems
• Automotive Electronics
• Adjustable Power Supplies
• Industrial Control Systems

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The TL783CKTTR is built to meet the stringent standards expected in professional electronics. It is designed to perform consistently over its lifespan, ensuring that systems using this regulator maintain their performance and reliability.

Ordering Information

The product is offered in a tape and reel format under the part number TL783CKTTR, facilitating easy integration into automated manufacturing processes. For detailed specifications, application notes, and additional resources, please consult the Texas Instruments official website or contact their support team.
