The Texas Instruments TLC5905PAP is a highly integrated LED driver IC designed to effectively manage and drive multiple LEDs with precision and efficiency. This powerful component is particularly well-suited for applications requiring constant-current control for LED arrays, such as large screen LCD backlights, automotive lighting, and LED display panels.

Key Features

• Constant-Current Output: The TLC5905PAP ensures a uniform and stable current supply to each LED, which is crucial for maintaining consistent brightness and color over time.
• Flexible Control: With its built-in PWM (Pulse Width Modulation) control, the device allows for easy adjustment of LED brightness, enabling dynamic lighting effects and power-saving capabilities.
• Error Detection: The IC includes thermal shutdown and open LED detection features, which help to prevent damage to the device or LEDs due to overheating or faulty connections.
• High Integration: The TLC5905PAP reduces the need for external components, simplifying design and saving board space, which is essential for compact and complex electronic products.
• Scalability: Multiple TLC5905PAP devices can be cascaded to drive a larger number of LEDs, making it an ideal choice for scalable designs that may require expansion.

Applications

The versatility of the TLC5905PAP allows it to be used across a wide range of LED driving applications. Its robust feature set is particularly beneficial for:

• Automotive interior and exterior lighting
• LED-based display panels for advertising and information displays
• Backlighting for LCD screens in consumer electronics
• Industrial and architectural lighting systems

Technical Specifications

The TLC5905PAP operates over a wide supply voltage range and offers a high level of integration, providing a compact and efficient solution for driving LEDs. Its technical specifications include:

• Output current programmable up to 120 mA
• Supply voltage range from 3.0 V to 5.5 V
• Integrated grayscale PWM control
• Thermal shutdown and LED open detection

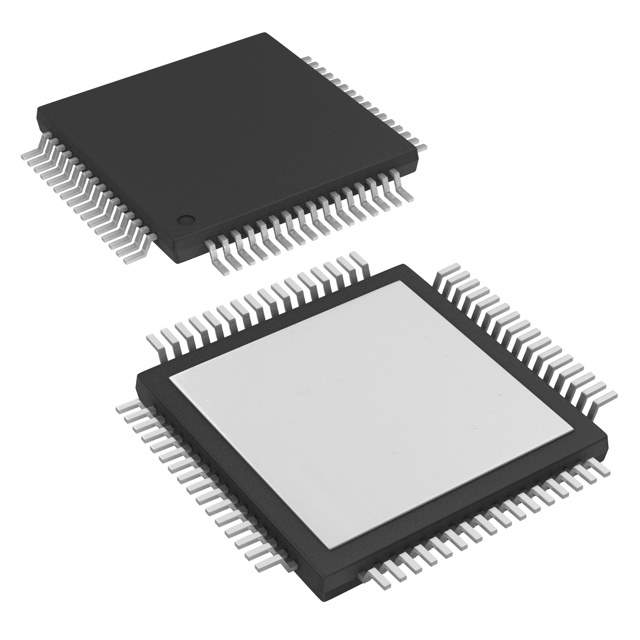

• Available in a PowerPAD™ package for enhanced thermal performance

With its comprehensive feature set and Texas Instruments' reputation for quality, the TLC5905PAP stands out as a reliable and efficient solution for advanced LED driving requirements.
