TLV2333IDR

Part No TLV2333IDR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OP AMP ZERO-DRIFT CMOS 8SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Zero-Drift
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 0.16 V/μs
Gain Bandwidth Product (GBP) 350kHz
Current - Input Bias 70pA
Voltage - Input Offset 2μV
Operating Supply Current 17μA
Channel Output Current 5mA
Supply Voltage - Operating 1.8 V to 5.5 V, ±0.9 V to 2.75 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 1109082-TLV2333IDR
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing, Industrial
Ultra Librarian 3D Model Ultra Librarian TLV2333IDR CAD Model

Description

The Texas Instruments TLV2333IDR is a precision operational amplifier (op-amp) that offers a blend of features suitable for a wide range of applications. This dual-channel op-amp is designed for low-voltage operation, with a supply voltage range of 2.7V to 16V, which makes it versatile for both single-supply and split-supply operations. The TLV2333IDR is part of the TLV233x series, which is known for its low power consumption and high accuracy.

Key Features

  • Low Power Consumption: The TLV2333IDR is optimized for low power without sacrificing performance. This makes it ideal for battery-powered devices and other power-sensitive applications.
  • High Input Impedance: With a high input impedance, this op-amp minimizes the current draw from the input source, preserving signal integrity and reducing power consumption.
  • Stable Operation: The device is designed to offer stable operation without external compensation, even with capacitive loads up to 500 pF.
  • Wide Bandwidth: A bandwidth of 560 kHz provides a good balance between speed and power consumption, making the TLV2333IDR suitable for a variety of signal processing tasks.
  • Rail-to-Rail Output: The rail-to-rail output swing ensures maximum dynamic range, which is particularly beneficial when operating at lower supply voltages.

Applications

The Texas Instruments TLV2333IDR is a versatile component that can be used in numerous applications. Some common uses include sensor amplification, active filters, and low-power medical devices. Its precision characteristics also make it suitable for data acquisition systems, portable instrumentation, and battery management systems.

Package and Quality

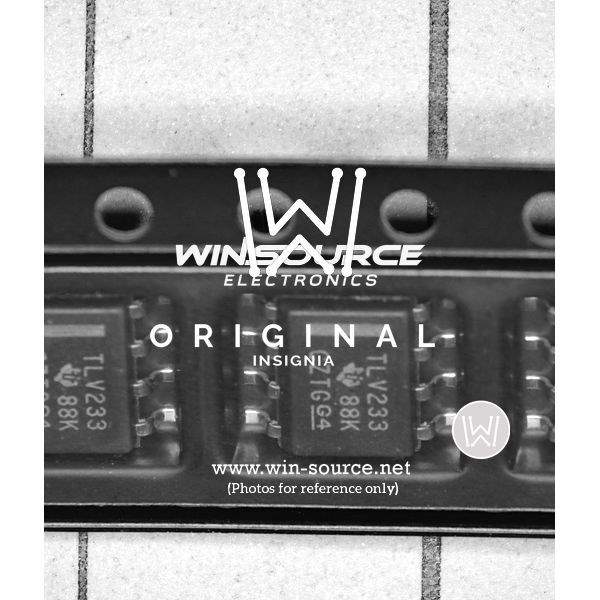

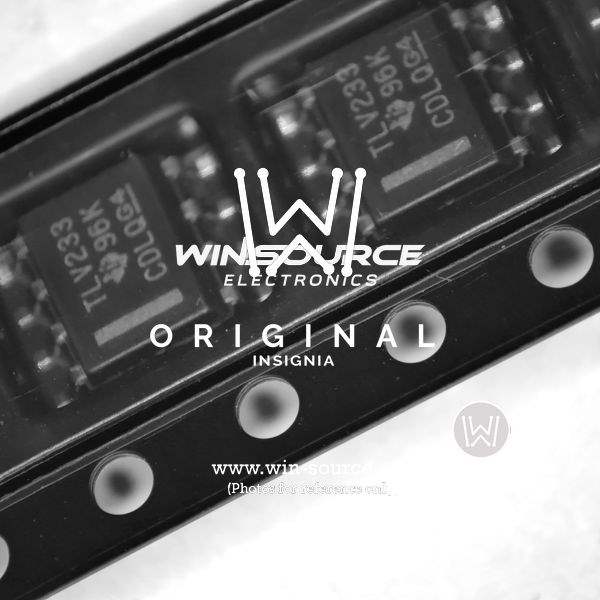

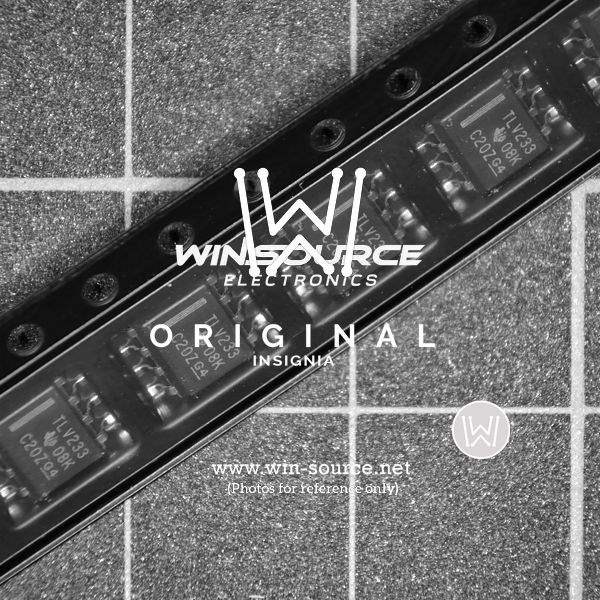

The TLV2333IDR is available in an 8-pin SOIC package, which is suitable for surface-mount technology (SMT) and is widely used in commercial and industrial electronic devices. The op-amp is characterized for operation from -40°C to 85°C, ensuring reliability in a range of environments. Texas Instruments is known for its commitment to quality, and this product meets the company's stringent standards.
