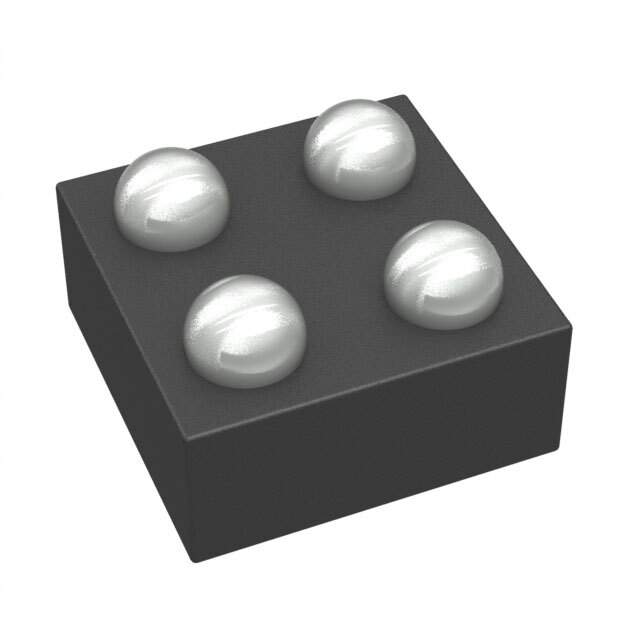

TLV70512YFPT

Part No TLV70512YFPT
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.2V 0.2A 4DSBGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.2V
Dropout Voltage-Max 0.25V @ 200mA
Output Current 200mA
Operating Supply Current 55μA to 315μA
PSRR 80dB to 55dB (10kHz to 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 4-DSBGA (0.8x0.8)
Win Source Part Number 1109636-TLV70512YFPT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLV70512YFPT CAD Model

Description

Overview of Texas Instruments TLV70512YFPT

The TLV70512YFPT is a state-of-the-art low-dropout (LDO) linear voltage regulator designed and manufactured by Texas Instruments (TI). This compact, high-performance component is optimized to deliver a fixed output voltage of 1.2V, which is ideal for powering sensitive electronic circuits that require a stable and precise voltage supply.

Key Features

  • High Accuracy: The TLV70512YFPT offers excellent regulation with an output voltage accuracy of ±2%, ensuring reliable performance for critical applications.
  • Low Dropout: It features a low dropout voltage, making it highly efficient for applications where the input voltage is close to the output voltage.
  • High PSRR: With a high power supply rejection ratio (PSRR), this LDO can suppress power supply noise, providing a clean output voltage, which is crucial for noise-sensitive applications.
  • Low Quiescent Current: The device has a low quiescent current, which minimizes power consumption when in operation, making it suitable for battery-powered devices.
  • Thermal Shutdown and Overcurrent Protection: Built-in safety features include thermal shutdown and overcurrent protection, safeguarding the device and the system from damage due to overheating or excessive current draw.
  • Small Package: The TLV70512YFPT comes in a compact 2x2mm DSBGA package, which is perfect for space-constrained applications.

Applications

Designed to meet the requirements of a wide range of applications, the TLV70512YFPT is particularly well-suited for use in portable electronics, such as smartphones, tablets, and wearable devices. It is also an excellent choice for powering sensors, microcontrollers, and other low-power devices in industrial and automotive systems that demand a small footprint and high-efficiency power management.

Conclusion

In conclusion, the Texas Instruments TLV70512YFPT LDO voltage regulator is an exemplary solution for applications requiring a small, efficient, and reliable power supply. Its advanced features and robust protection mechanisms make it an indispensable component for designers looking to optimize their power management systems.
