Overview of Texas Instruments TLV70525YFPR

The Texas Instruments TLV70525YFPR is a highly efficient, low-dropout (LDO) voltage regulator designed to deliver a fixed output voltage of 2.5V. This compact component is part of TI's expansive TLV705 series, which is renowned for its low quiescent current, making it an excellent choice for battery-powered and portable applications where power conservation is paramount.

Key Features

• Low Dropout: The TLV70525YFPR boasts a low dropout voltage, ensuring stable operation even when the input voltage is very close to the output voltage, which is particularly beneficial for prolonging battery life in portable devices.
• High Accuracy: This LDO voltage regulator provides a high output voltage accuracy, which is crucial for sensitive electronics that require a consistent power supply.
• Low Quiescent Current: With a quiescent current of just 34 µA, the TLV70525YFPR is optimized for energy-sensitive applications, contributing to extended battery life.
• Thermal Shutdown and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features, safeguarding your electronic components from potential damage due to overheating or excessive current.
• Stable with Low-ESR Capacitors: The TLV70525YFPR is stable with ceramic capacitors as low as 0.1 µF, which allows for a compact design footprint.

Applications

The TLV70525YFPR is particularly well-suited for a variety of applications, including but not limited to:

• Portable and battery-powered devices
• Smartphones and wearable technology
• Wireless communication systems
• Power supply for sensors and microcontrollers
• Healthcare and medical equipment

Package and Availability

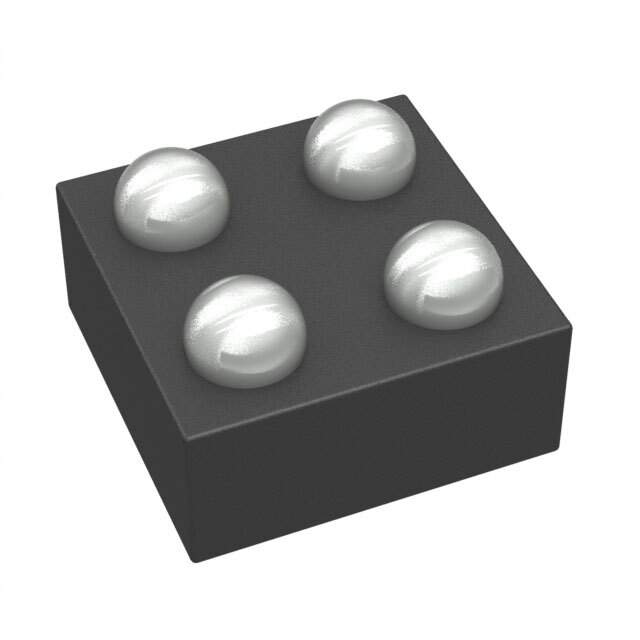

The TLV70525YFPR is available in a small, leadless DSBGA package that measures just 1.0 mm x 1.0 mm, allowing for integration into space-constrained designs. The device operates over a wide temperature range from -40°C to 125°C, accommodating a broad spectrum of environmental conditions. Texas Instruments provides this LDO voltage regulator in reel packaging, facilitating easier manufacturing and assembly processes for high-volume production.

With its combination of low power consumption, high accuracy, and compact form factor, the Texas Instruments TLV70525YFPR is an ideal choice for designers looking to enhance the efficiency and reliability of their electronic products.
