The TLV9004IRUCR is a high-performance, low-power operational amplifier from Texas Instruments designed to meet the needs of various signal conditioning applications. This quad operational amplifier is part of the TLV900x family and is characterized by its low-voltage operation and rail-to-rail input/output capabilities, making it an ideal choice for battery-powered and portable devices.

Key Features

• Low Supply Voltage: The TLV9004IRUCR operates at a supply voltage range of 1.8V to 5.5V, which is perfect for applications that require efficient power usage without compromising performance.
• Rail-to-Rail Input/Output: This amplifier features rail-to-rail input and output swing which provides the maximum dynamic range, especially useful in low-voltage applications.
• Low Power Consumption: With a quiescent current of just 500 µA per channel, this device is optimized for power-sensitive applications, extending the battery life of portable devices.
• High Gain Bandwidth: The TLV9004IRUCR offers a gain bandwidth product of 1 MHz, which is suitable for a wide range of applications, including audio processing and sensor amplification.
• Extended Temperature Range: It is operational over an extended temperature range from -40°C to 125°C, ensuring reliability in harsh environments.

Applications

The TLV9004IRUCR is versatile and can be used in a variety of applications, including:

• Portable and battery-powered devices
• Signal conditioning circuits
• Analog filters
• Audio electronics
• Sensor amplification and interfacing
• Active filtering
• Medical instrumentation

Package and Quality

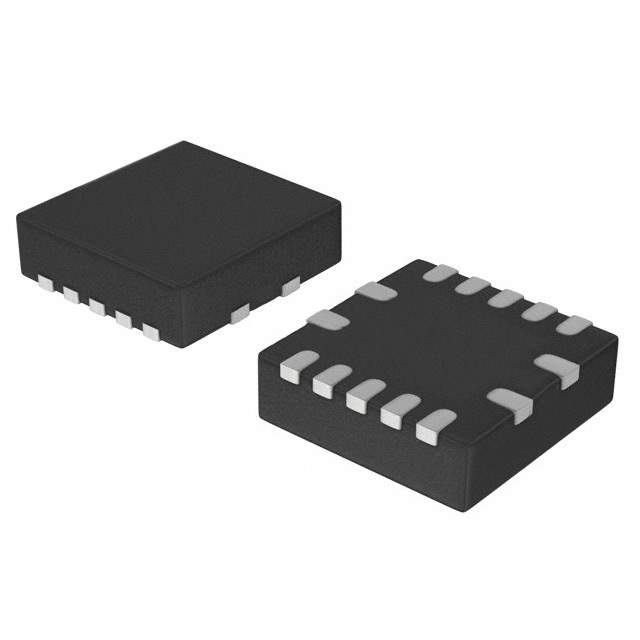

The TLV9004IRUCR comes in a small, space-saving 14-pin QFN package, which is ideal for compact designs. Texas Instruments is known for its commitment to quality, and this product is no exception, ensuring high reliability and performance for critical applications.

With its combination of features, the TLV9004IRUCR from Texas Instruments is an excellent choice for designers looking for a general-purpose operational amplifier that delivers both efficiency and versatility.
