Product Overview: TLV9152IDR from Texas Instruments

The TLV9152IDR is a high-precision operational amplifier (op-amp) designed and manufactured by Texas Instruments, a leader in analog and digital semiconductor ICs. This particular model is part of the TLV915x family of op-amps that are known for their low noise, high-speed operation, and rail-to-rail output, making them ideal for a wide range of applications.

Key Features

• Supply Voltage: The TLV9152IDR operates from a single supply voltage ranging from 4.5V to 36V, or dual supplies of ±2.25V to ±18V, providing flexibility in various circuit designs.
• Low Noise: It boasts a low voltage noise density of 7.5 nV/√Hz at 1 kHz, which is excellent for applications requiring high signal integrity.
• High-Speed Performance: With a slew rate of 10 V/µs and a gain bandwidth product of 10 MHz, it is suitable for fast signal processing applications.
• Rail-to-Rail Output: The op-amp provides a rail-to-rail output swing, which maximizes the dynamic range when operating from low supply voltages.
• Extended Temperature Range: The device is operational over an extended industrial temperature range of -40°C to +125°C, making it reliable in harsh environments.

Applications

The TLV9152IDR is versatile and can be used in various electronic circuits, including but not limited to:

• Test and measurement equipment
• Medical devices
• Audio and video processing
• Active filters and signal conditioning
• Analog to digital converters (ADC) drivers

Package and Quality

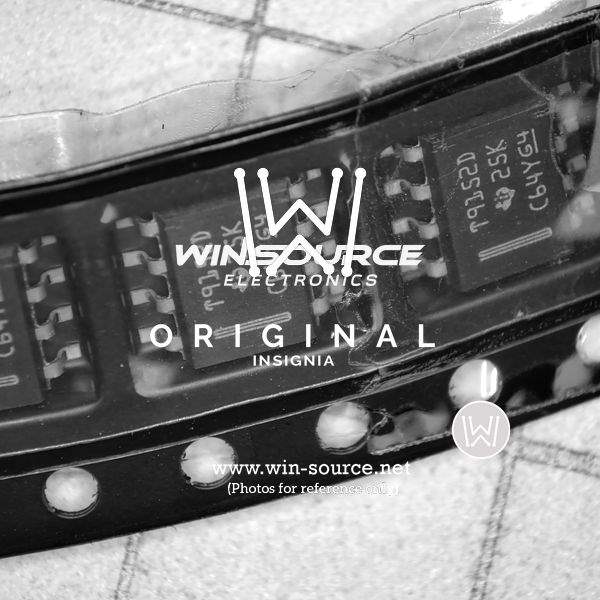

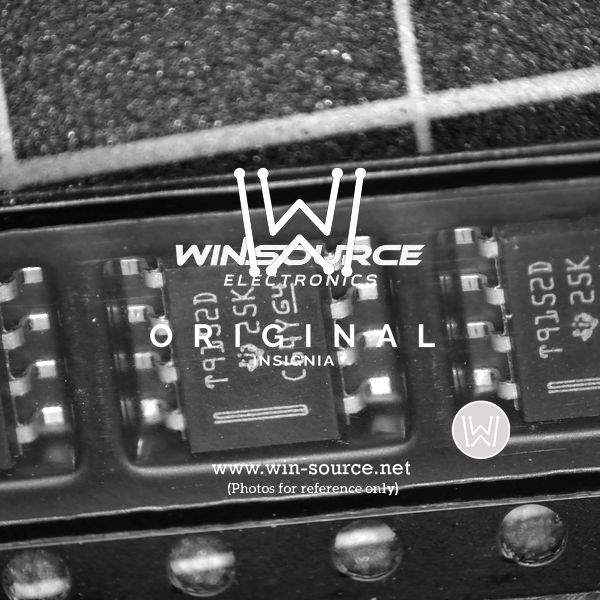

The TLV9152IDR comes in an 8-pin SOIC package, which is compact and suitable for space-constrained applications. Texas Instruments is committed to high standards of quality and reliability, and this product is no exception. It represents a combination of TI's rigorous design processes, quality manufacturing, and thorough testing to ensure performance and durability.

Whether you're designing for consumer electronics, automotive, or industrial applications, the TLV9152IDR op-amp is a reliable choice that offers precision, efficiency, and versatility.
