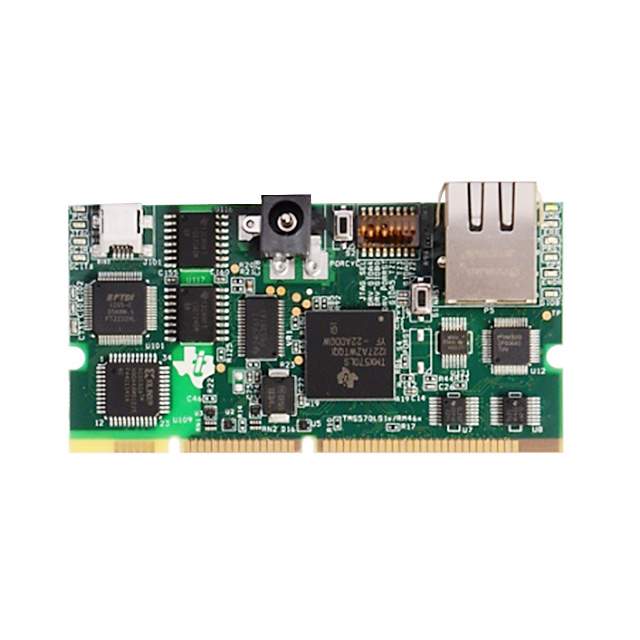

TMDX570LS12CNCD - Texas Instruments Hercules™ Safety Microcontroller

The TMDX570LS12CNCD from Texas Instruments is a highly advanced microcontroller development kit designed for safety-critical applications. This product is part of the Hercules™ TMS570 series, which is specifically engineered to meet the rigorous demands of the automotive and industrial markets, where reliable operation and compliance with safety standards are paramount.

At the heart of the TMDX570LS12CNCD is a powerful ARM® Cortex®-R5 based TMS570LS12x microcontroller that operates at a frequency of up to 330 MHz. The microcontroller is equipped with dual cores in lockstep, ensuring redundancy and fault tolerance, which is essential for safety-critical systems like electronic brake systems, airbags, and advanced driver-assistance systems (ADAS).

The development kit provides a robust platform for development and evaluation, featuring a wide range of peripherals and interfaces. It includes CAN, LIN, Ethernet, and FlexRay communication interfaces, which are vital for automotive and industrial network applications. The kit also offers a high-resolution timer, N2HET, ideal for complex timing operations, and an integrated Motor Control PWM with fault protection for motor drive applications.

Safety features of the TMS570LS12x MCU include ECC (Error Correction Code) on both Flash and RAM, built-in self-test hardware, and a Memory Protection Unit (MPU) that enhances the reliability and security of applications. These features make the TMDX570LS12CNCD an excellent choice for developing systems that must comply with safety standards such as ISO 26262 and IEC 61508.

The development board comes with a range of development tools to streamline the development process, including Code Composer Studio™ integrated development environment (IDE) and HALCoGen, a graphical configuration tool for generating initialization and peripheral driver code. Additionally, the kit is compatible with various third-party software and hardware tools, offering developers the flexibility to choose the best tools for their specific application requirements.

Overall, the TMDX570LS12CNCD is a versatile and reliable development platform that provides engineers with the tools and features needed to create sophisticated, safety-oriented applications with confidence.
