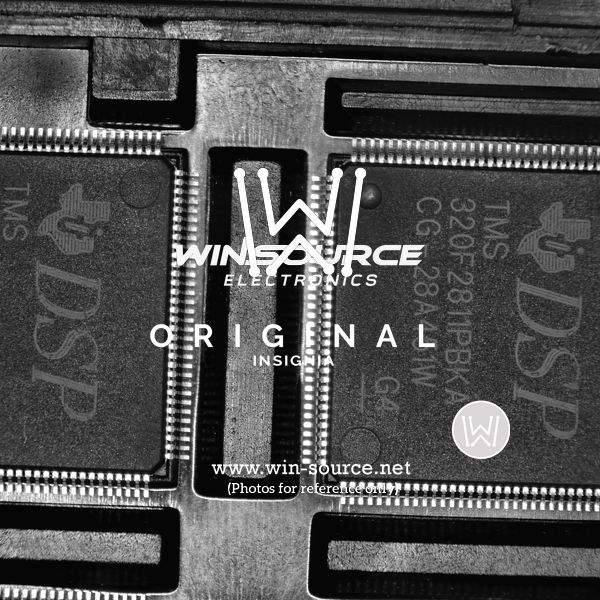

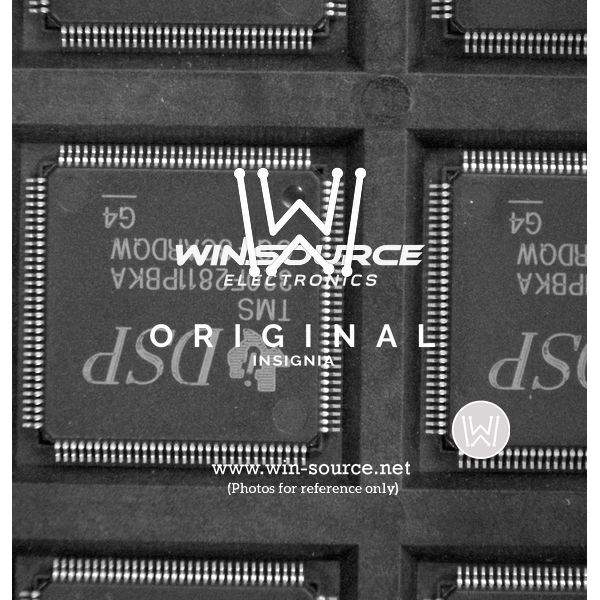

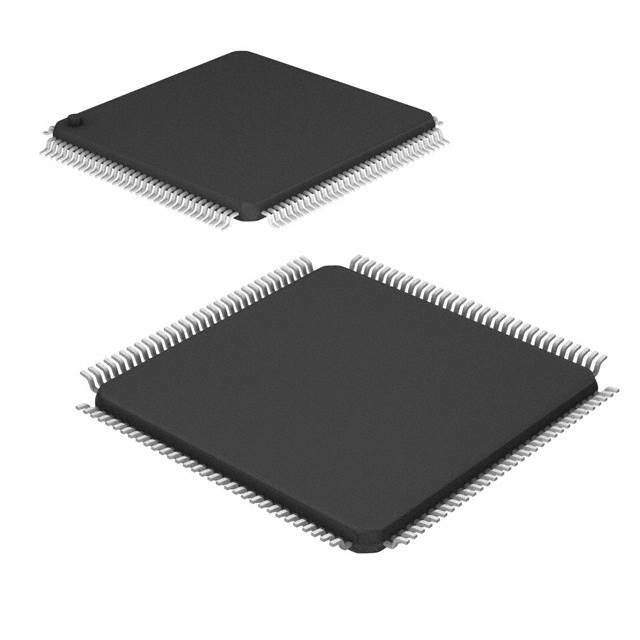

The TMS320F2811PBKA is a high-performance digital signal processor (DSP) from Texas Instruments (TI), designed to meet the intense processing needs of modern control applications. This product is part of the TMS320C28x™ DSP generation that incorporates a high level of on-chip integration to support rapid and efficient processing in embedded control environments.

Key Features:

• High-Performance Static CMOS Technology: The TMS320F2811PBKA operates at a frequency of up to 150 MHz, delivering 150 million instructions per second (MIPS), which allows for fast and efficient processing of complex algorithms.
• Integrated Memory: This DSP includes 128K x 16 Flash, 18K x 16 SRAM, providing ample space for code storage and data processing without the need for external memory components.
• Flexible Peripherals: It boasts a range of on-chip peripherals including an Event Manager (EVA & EVB), a 12-bit Analog-to-Digital Converter (ADC), and a High-Resolution Pulse Width Modulator (HRPWM) which are essential for advanced motor control, sensor interfacing, and real-time event management.
• JTAG Boundary Scan Support: To facilitate debugging and system integration, the TMS320F2811PBKA supports JTAG boundary scan.
• Low Power Consumption: Designed with power-sensitive applications in mind, this DSP offers multiple power-down modes to minimize energy usage when full processing power is not required.

Applications:

The versatility of the TMS320F2811PBKA makes it suitable for a wide array of applications, particularly in the industrial sector. It is an ideal choice for:

• Advanced Motor Controls
• Digital Power Conversion
• Intelligent Sensing Systems
• Industrial Automation Systems
• Automotive Control Systems

Conclusion:

With its robust architecture, comprehensive set of peripherals, and high-speed processing capabilities, the Texas Instruments TMS320F2811PBKA DSP is engineered to excel in demanding control applications. Its integration and performance make it a go-to solution for developers looking to create sophisticated and reliable embedded systems.
