The TMS320F2812PGFS is a high-performance 32-bit digital signal processor (DSP) from Texas Instruments, designed for a wide range of applications that require significant computational speed and power. As part of the TMS320C28x™ DSP generation, it is particularly suitable for control-oriented tasks in industrial, automotive, and consumer electronics markets.

Key Features

• High-Performance Processing: At the core of the TMS320F2812PGFS lies a 32-bit CPU (150 MHz) which provides 150 million instructions per second (MIPS). This makes it an ideal solution for high-speed and complex algorithms.
• Integrated Memory: The device comes with 128K x 16 Flash, 18K x 16 SARAM, allowing for efficient program and data storage.
• Robust Peripheral Set: This DSP boasts a variety of peripherals including CAN, McBSP, SPI, SCI (UART), and I2C modules, enhancing its interfacing capabilities with other devices and systems.
• Flexible PWM Outputs: It features 16 PWM outputs which are highly beneficial for motor control and other PWM-intensive applications.
• Analog-to-Digital Converter (ADC): The onboard 12-bit ADC with 16 channels provides precise measurement capabilities, essential for real-time control systems.
• JTAG Boundary Scan Support: For ease of programming and debugging, JTAG support is included.

Applications

The TMS320F2812PGFS is versatile and can be used in various applications such as:

• Industrial control systems
• Automotive control units
• Robotics
• Power management systems
• Digital power supplies
• Renewable energy systems

Package and Quality

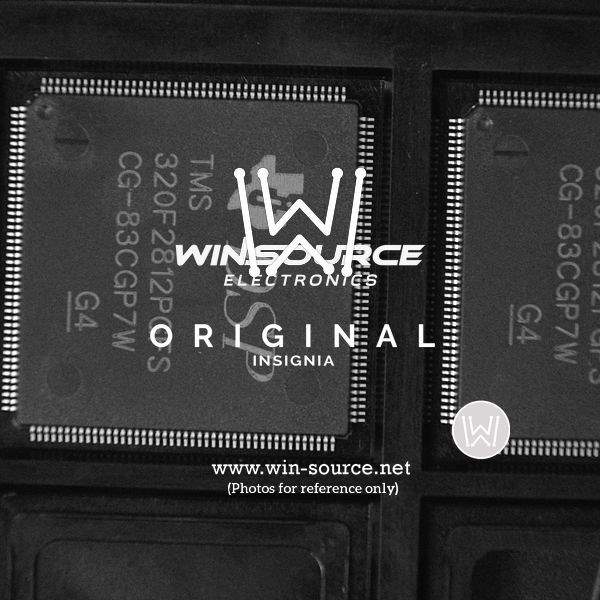

The DSP is available in a 176-pin LQFP (Low Profile Quad Flat Package) that offers a compact footprint for space-constrained applications. Texas Instruments ensures high standards of quality and reliability, making the TMS320F2812PGFS a trusted choice for engineers and designers looking for a robust DSP solution.

For detailed technical specifications, application resources, and support tools, visit the Texas Instruments website.
