The TMUX1101DCKR from Texas Instruments is a state-of-the-art precision analog switch designed to provide exceptional performance in a wide range of applications. This device is part of the TMUX1101 series, which is renowned for its low on-resistance and low charge injection, making it ideal for high-precision circuits where signal integrity is paramount.

Key Features:

• Low On-Resistance: The TMUX1101DCKR boasts an ultra-low on-resistance (Ron) of typically 0.5 ohms, which ensures minimal signal distortion and voltage drop across the switch, thereby preserving signal fidelity.
• Single Supply Operation: This switch operates on a single power supply ranging from 1.8V to 5.5V, which accommodates a broad spectrum of applications from battery-powered devices to industrial equipment.
• Low Charge Injection: With low charge injection, this device minimizes the impact on the signal as the switch transitions, which is critical for precision analog and sampling circuits.
• Bidirectional Signal Flow: The bidirectional nature of the switch channels allows signals to flow in both directions, offering flexibility in signal routing within a circuit.
• Break-Before-Make Switching: The TMUX1101DCKR features break-before-make (BBM) switching, which prevents shorting of signals during channel transitions and is especially important in multiplexing applications.

Applications:

The TMUX1101DCKR is a versatile component that can be used in various applications, including:

• Data Acquisition Systems (DAQ)
• Test and Measurement Equipment
• Audio Signal Routing
• Communication Systems
• Analog Input/Output Multiplexing

Package and Quality:

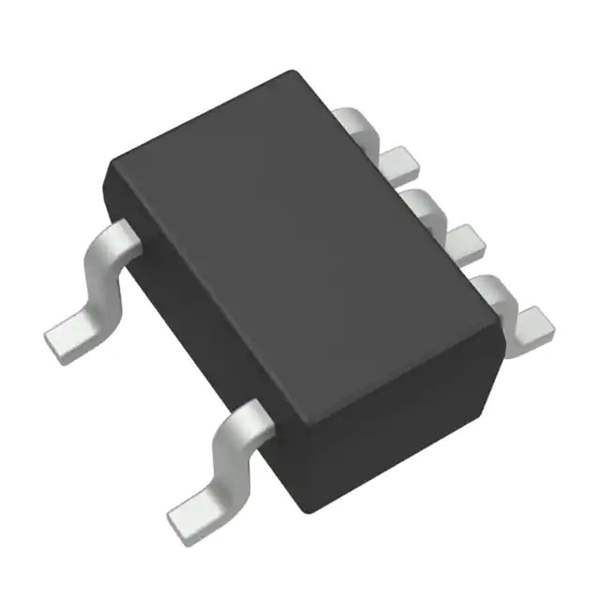

This device is available in an SC70-6 package, which is not only space-saving but also suitable for high-density mounting on PCBs. The TMUX1101DCKR is characterized for operation from -40°C to 125°C, ensuring reliable performance across a wide range of temperatures. Texas Instruments is committed to delivering high-quality components, and the TMUX1101DCKR is no exception, meeting stringent industry standards for performance and reliability.
