The TMUX7209RUMR is a state-of-the-art precision analog multiplexer from Texas Instruments, designed for exceptional performance and versatility across a wide range of applications. This advanced semiconductor device provides a single 8:1 or dual 4:1 multiplexer configuration, offering designers the flexibility to route multiple analog signals through a single device.

Key Features

• Low On-Resistance: The TMUX7209RUMR features ultra-low on-resistance of typically 10 ohms, ensuring minimal signal distortion and power loss.
• Wide Operating Voltage Range: It operates across a broad voltage range of 1.08 V to 5.5 V, making it suitable for various low-voltage and portable applications.
• Enhanced Signal Integrity: With its low charge injection and low on-capacitance, the device preserves signal fidelity, making it ideal for precision data acquisition and audio applications.
• ESD Protection: The device includes robust Electrostatic Discharge (ESD) protection, safeguarding it against the damaging effects of static electricity.
• Break-Before-Make Switching: This feature prevents signal overlap during channel transitioning, thus eliminating the possibility of shorting the channels.
• Multiple Configuration Options: Users can configure the TMUX7209RUMR as a single 8:1 or dual 4:1 multiplexer, providing design flexibility.

Applications

• Data Acquisition Systems
• Test Equipment
• Audio Signal Routing
• Medical Equipment
• Communication Systems

Package and Quality

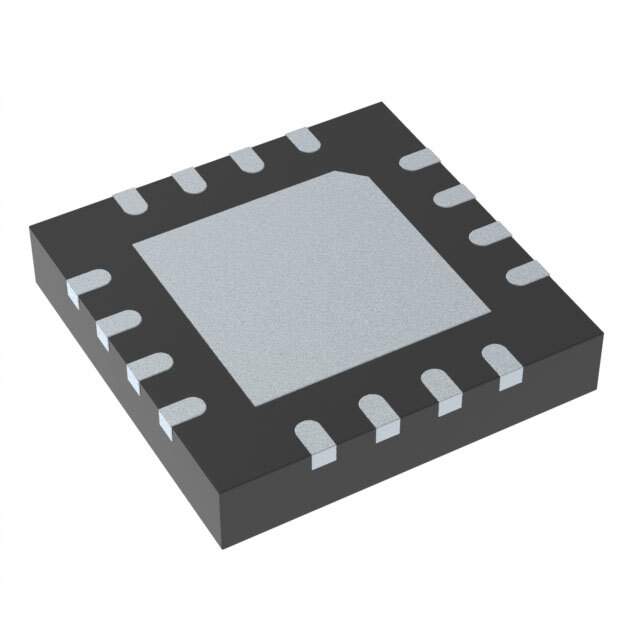

The TMUX7209RUMR comes in a compact, surface-mount, micro-QFN package that is both space-efficient and suitable for automated assembly processes. Texas Instruments is committed to the highest quality standards, and this product complies with their rigorous reliability testing, ensuring long-term performance and stability in a variety of conditions.

Conclusion

With its combination of low on-resistance, wide voltage range, and flexible configuration options, the TMUX7209RUMR from Texas Instruments is a highly reliable and versatile choice for designers looking to optimize their analog signal routing in both simple and complex electronic systems.
