Product Overview: TMUX7412FRRPR from Texas Instruments

The TMUX7412FRRPR is a state-of-the-art, precision analog multiplexer from Texas Instruments designed for exceptional performance in a wide range of applications. This advanced switch IC provides 4 channels of 2:1 multiplexing, making it an ideal solution for signal routing in complex systems. Its low on-resistance and on-capacitance ensure minimal signal distortion, making it perfect for high-fidelity audio, sensitive measurement equipment, and other applications requiring high signal integrity.

Key Features

• Low On-Resistance: The TMUX7412FRRPR boasts an ultra-low on-resistance, typically around 5 ohms, which reduces signal loss and maintains the integrity of the signal path.
• Wide Operating Voltage Range: It operates across a wide voltage range of 1.08V to 5.5V, accommodating various power supply levels and ensuring compatibility with both digital and analog signal levels.
• Low Charge Injection: The device exhibits low charge injection, minimizing the impact of switching on the signal quality, which is crucial for precision applications.
• Break-Before-Make Switching: The TMUX7412FRRPR features break-before-make switching logic, which prevents signal overlap during channel transitions and protects against short circuits.
• Extended Temperature Range: It is designed to operate reliably over an extended temperature range from -40°C to 125°C, making it suitable for industrial environments.

Applications

The TMUX7412FRRPR is versatile and can be used in a variety of applications, including:

• Data acquisition systems
• Test and measurement equipment
• Audio and video signal routing
• Communication systems
• Analog input multiplexing for ADCs

Package and Reliability

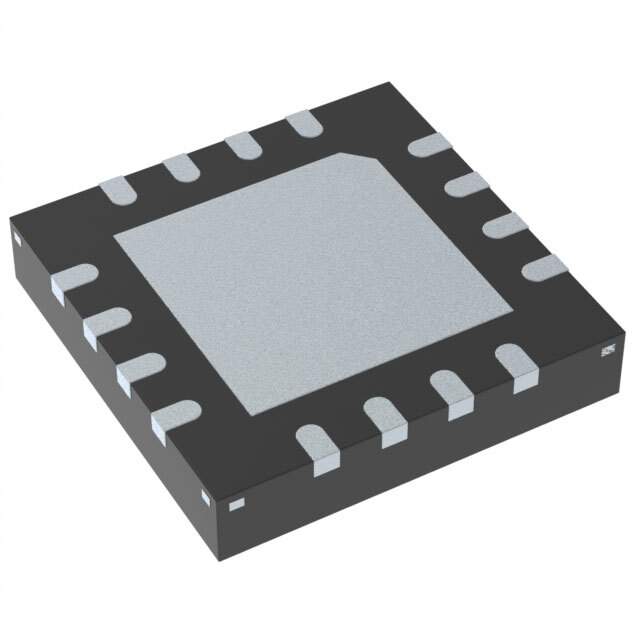

This multiplexer comes in a compact QFN-16 package, which is not only space-efficient but also offers excellent thermal performance. The TMUX7412FRRPR is part of Texas Instruments’ commitment to high-quality and reliable components, ensuring long-term performance for your critical applications.

Conclusion

With its combination of low on-resistance, wide operating voltage range, and robust design, the TMUX7412FRRPR from Texas Instruments represents a superior choice for designers who require a reliable and precise analog multiplexer. Whether for industrial, commercial, or consumer electronics, this component delivers the performance needed to handle complex signal routing with ease.
