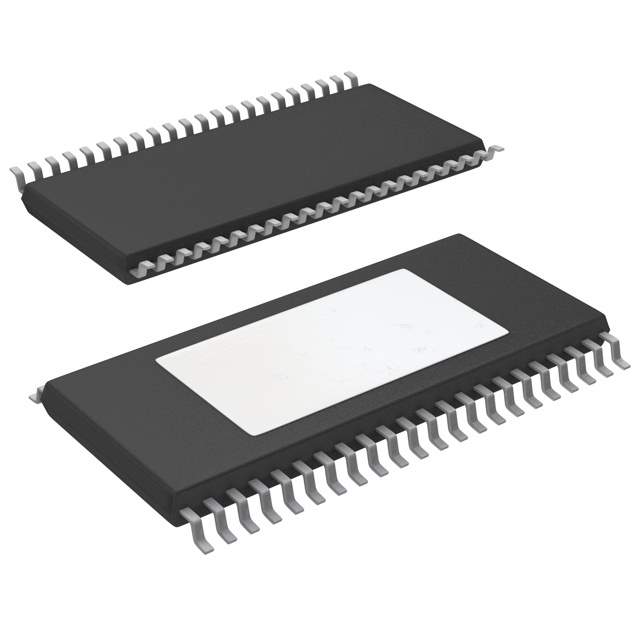

Overview of Texas Instruments TPA3251D2DDVR

The TPA3251D2DDVR from Texas Instruments is a high-performance Class-D power amplifier that is designed to deliver premium audio quality with high efficiency and reliability. This advanced amplifier is suitable for a wide range of applications including home theater systems, sound bars, active speakers, and professional audio equipment.

Key Features

• High Efficiency: With its Class-D operation, the TPA3251D2DDVR offers an impressive efficiency of up to 92%, minimizing heat generation and power loss, which makes it ideal for energy-sensitive applications.
• Advanced Modulation: The device utilizes TI's proprietary PurePath™ Ultra-HD technology, which allows for ultra-low distortion across the audio band and superior sound quality.
• Output Power: It can deliver up to 175 watts per channel into 4 ohms and 105 watts into 8 ohms, thus providing ample power for driving a wide array of speakers.
• Configurability: The TPA3251D2DDVR is highly configurable and can be set up in various modes such as stereo, mono, or even multi-channel configurations to suit different audio system requirements.
• Integrated Feedback: The integrated feedback design ensures exceptional audio performance with low idle loss and reduced system cost.

Applications

• Home Theater Systems
• Sound Bars
• Active Speakers
• Professional Audio Equipment

Technical Specifications

The TPA3251D2DDVR operates over a wide supply voltage range from 18V to 53.5V and features a high PSRR (Power Supply Rejection Ratio) which reduces the need for a regulated power supply. It is designed with built-in protection features including over-current, over-temperature, and under-voltage lockout, ensuring the safety and longevity of the amplifier.

With its excellent audio performance, robust design, and versatile application range, the TPA3251D2DDVR from Texas Instruments stands out as a top-tier choice for designers and audio enthusiasts looking to create high-quality sound systems with efficient power usage.
