Product Overview: TPL0102-100RUCR

The TPL0102-100RUCR is a state-of-the-art digital potentiometer designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This device is part of the TPL series, renowned for its high-performance and reliable digital potentiometer offerings. The TPL0102-100RUCR is designed to provide precise resistance adjustments in a variety of electronic applications.

Key Features

• Resistance Range: The device offers a wide resistance range of 100kΩ, allowing for versatile applications in different circuit designs.
• Dual Channel: It features two independent potentiometers in one package, providing compact solutions for applications requiring multiple potentiometers.
• Non-Volatile Memory: With integrated non-volatile memory (EEPROM), the TPL0102-100RUCR can store user-defined settings, ensuring that the desired resistance values are maintained even after power cycling.
• Resolution: The digital potentiometer offers a high resolution with 256 wiper positions, enabling fine adjustments for precise control.
• Interface: It supports an I2C interface, facilitating easy communication and control through a microcontroller or processor.
• Supply Voltage: The device operates over a wide supply voltage range, accommodating various power supply requirements.

Applications

The TPL0102-100RUCR is versatile and can be used in numerous applications such as:

• Adjustable power supplies
• Audio equipment
• Calibration and tuning systems
• Consumer electronics
• Automotive electronics

Package and Quality

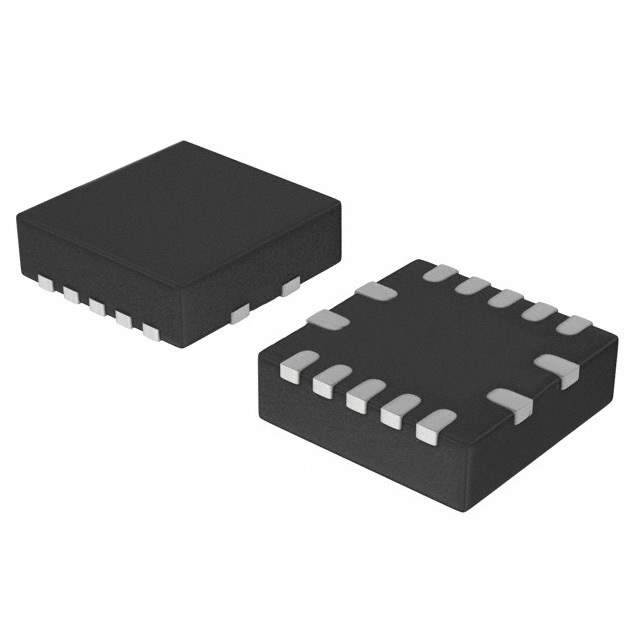

This digital potentiometer comes in a compact RUCR package, which is designed for surface-mount technology (SMT), making it suitable for modern, high-density electronic assemblies. The TPL0102-100RUCR is built to meet the rigorous quality standards of Texas Instruments, ensuring reliability and performance in even the most demanding conditions.

Conclusion

In conclusion, the TPL0102-100RUCR from Texas Instruments is an advanced digital potentiometer solution that offers precision, versatility, and reliability for designers and engineers. Its integration of non-volatile memory, dual-channel configuration, and high-resolution adjustment capabilities make it an ideal choice for a wide range of electronic applications.
