Overview of TPS2066TDGNRQ1 from Texas Instruments

The TPS2066TDGNRQ1 is a state-of-the-art, automotive-compliant, power-distribution switch designed by Texas Instruments to address the stringent requirements of power management within vehicular systems. This robust device is specifically engineered to facilitate the distribution and protection of power in applications that are exposed to the harsh environments typical in automotive contexts.

Key Features

• High-Voltage Capability: The TPS2066TDGNRQ1 is capable of handling input voltages ranging from 4.5V to 5.5V, making it versatile for various automotive power systems.
• Multiple Output Channels: Equipped with dual channels, this device can manage more than one load, providing flexibility in power distribution.
• Current-Limiting Function: To protect against overcurrent conditions, the TPS2066TDGNRQ1 incorporates a current-limiting feature that helps prevent damage to the power switch and the downstream components.
• Thermal Shutdown Protection: The inclusion of thermal shutdown protection ensures that the device operates within safe temperature ranges, thereby preventing thermal overload and potential system failures.
• Reverse Voltage Protection: This device is designed to withstand reverse voltage conditions, safeguarding the circuitry from potential damage due to incorrect power connections.

Automotive Applications

The TPS2066TDGNRQ1 is ideal for a variety of applications within the automotive sector, including but not limited to:

• USB hubs and ports
• Infotainment systems
• Navigation units
• Advanced driver-assistance systems (ADAS)

Quality and Reliability

As an automotive-qualified product, the TPS2066TDGNRQ1 meets the rigorous AEC-Q100 standards for reliability and performance. Texas Instruments' commitment to quality ensures that this power distribution switch operates reliably in the demanding conditions encountered in automotive environments, including temperature extremes and vibration.

Package and Availability

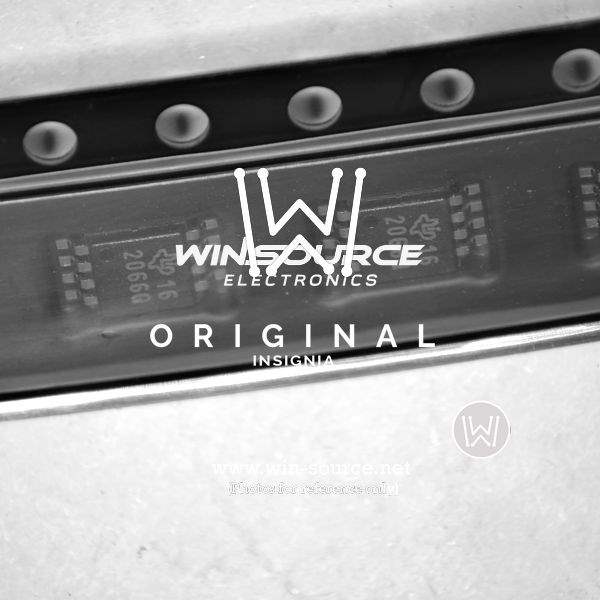

The TPS2066TDGNRQ1 comes in a compact 8-pin MSOP (DGK) package, which is suitable for space-constrained applications. Texas Instruments provides comprehensive technical support and documentation, including datasheets, application notes, and design resources, to facilitate the integration of this device into automotive systems.

For engineers and designers looking for a reliable power distribution solution for their automotive projects, the TPS2066TDGNRQ1 offers the performance, protection, and peace of mind required to keep vehicular electronics running safely and efficiently.
