The TPS630701RNMT from Texas Instruments is a highly efficient, small form factor, switch-mode buck-boost converter ideal for applications where the input voltage can be both higher and lower than the output voltage. This converter integrates switches capable of providing a seamless transition between step-down and step-up modes, delivering a constant output voltage with high efficiency.

Key Features

• Versatile Input Voltage: The TPS630701RNMT operates over a wide input voltage range from 2.5V to 12V, accommodating a variety of power sources.
• Adjustable Output Voltage: The output voltage is adjustable from 2.5V to 12V, which allows for flexibility in different design applications.
• High Efficiency: With up to 96% efficiency, this buck-boost converter minimizes power loss and is suitable for battery-powered devices.

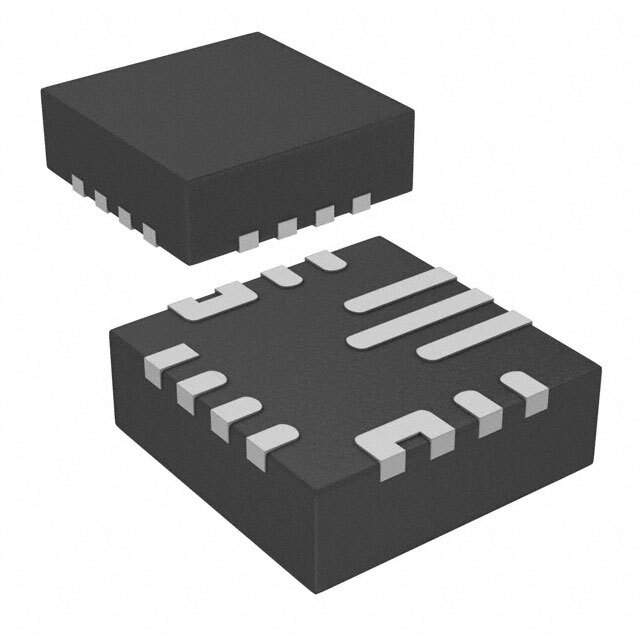

• Compact Design: Housed in a small 3.5mm x 3.5mm QFN package, it is perfect for space-constrained applications.
• Low Quiescent Current: The device features a low quiescent current of 35 µA, making it suitable for portable applications where extending battery life is crucial.
• Power Save Mode: For light load operations, the converter enters Power Save Mode to maintain high efficiency over the entire load range.

Applications

The TPS630701RNMT is designed for use in a variety of applications, including but not limited to:

• Portable and battery-powered equipment
• Power banks and USB-powered devices
• Energy harvesting and solar-powered systems
• Industrial power supplies
• Handheld medical devices

Quality and Reliability

As with all Texas Instruments products, the TPS630701RNMT is manufactured to the highest quality standards, ensuring reliable performance in even the most demanding applications. The device is RoHS compliant and is designed to meet the rigorous requirements of industrial and automotive temperature ranges.
