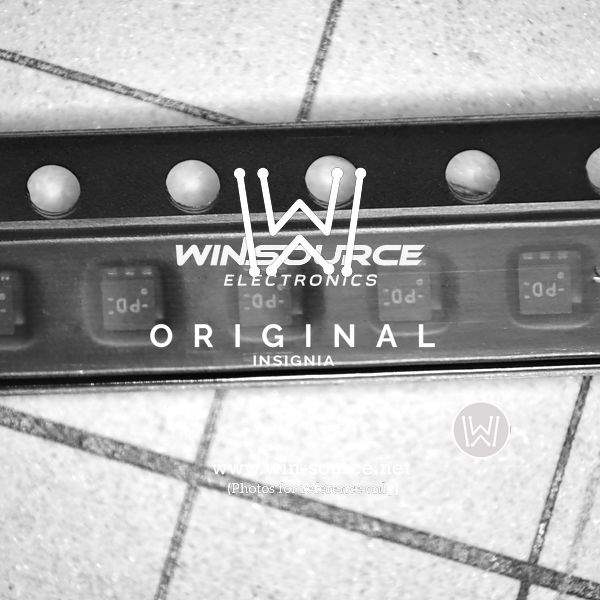

The TPS71750DSET is a high-performance, low-dropout linear regulator (LDO) from Texas Instruments designed to deliver a stable and precise voltage supply. This component is an ideal choice for sensitive analog circuits, RF applications, and post-regulated power supplies due to its low noise output and excellent transient response.

Key Features

• Output Voltage: The TPS71750DSET provides a fixed output voltage of 5V, which is suitable for a variety of digital and analog circuits.
• High Accuracy: With an output voltage accuracy of ±2%, it ensures reliable performance for critical applications.
• Low Dropout Voltage: The low dropout voltage of just 150mV at full load (150mA) allows for efficient operation even when the input voltage is close to the output voltage, which is particularly useful in battery-operated devices.
• Low Quiescent Current: The device features a low quiescent current of 45µA (typical), which is beneficial for extending battery life in portable applications.
• Stable with Low-ESR Capacitors: The TPS71750DSET is stable with ceramic capacitors, which helps in reducing the size and cost of the overall design.
• Thermal Shutdown and Overcurrent Protection: Built-in safety features include thermal shutdown and overcurrent protection, enhancing the reliability and longevity of the device.
• Small Package Size: The device comes in a small, leadless DSE (3.00 mm x 3.00 mm) package, which is ideal for space-constrained applications.

Applications

The versatility of the TPS71750DSET makes it suitable for a wide range of applications, including:

• Portable and battery-powered devices
• Wireless LAN and Bluetooth® devices
• Handheld medical equipment
• GPS receivers
• High-precision analog circuits
• Post-regulated power supplies for microcontrollers and DSPs

With its combination of precision, low power consumption, and compact form factor, the TPS71750DSET from Texas Instruments is an excellent choice for designers looking to enhance the performance and efficiency of their electronic products.
