The TPS71918-12DRV from Texas Instruments is a highly efficient, low-dropout linear regulator (LDO) designed to deliver a fixed output voltage of 1.2 volts with an input voltage range from 2.5V to 6.5V. This component is specifically engineered to meet the power management requirements of battery-powered and low-power applications.

Key Features:

• Output Voltage: Precisely regulated 1.2V output ensures reliable operation of sensitive electronic devices.
• High Accuracy: The output voltage accuracy is within ±2%, providing stable performance over the full range of operating conditions.
• Low Dropout: With a very low dropout voltage, this LDO can operate efficiently even when the input-to-output voltage differential is minimal.
• Current Capacity: Capable of delivering up to 200mA of output current, making it suitable for a variety of low-power applications.
• Power Supply Rejection Ratio (PSRR): Excellent noise suppression with a high PSRR of 70dB at 1kHz, ensuring a clean and stable voltage supply.
• Thermal and Overcurrent Protection: Built-in safety features protect the device and the load from damage due to overheating or excessive current draw.
• Low Quiescent Current: The low quiescent current of 41µA contributes to the overall energy efficiency, making it ideal for battery-operated devices.

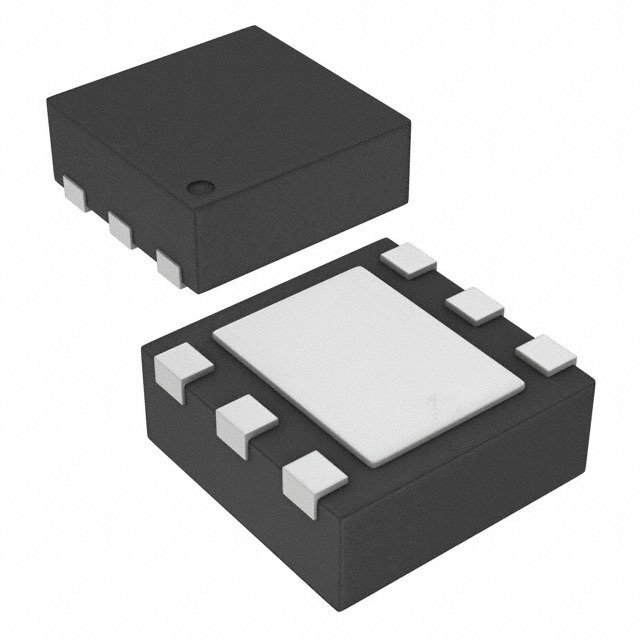

• Small Package Size: Available in a compact 2x2mm SON-6 package, the TPS71918-12DRV is designed for space-constrained applications.

Applications:

The TPS71918-12DRV is versatile and can be used across a broad range of electronic devices. It is particularly well-suited for:

• Portable and battery-powered equipment
• Wireless and RF systems
• Microcontroller power supplies
• Medical devices
• Power management for sensors and analog circuits

With its combination of high accuracy, low dropout, and low power consumption, the TPS71918-12DRV from Texas Instruments is an excellent choice for designers looking to optimize the power efficiency and performance of their electronic products.
