Product Overview: TPS74601PBDRVR by Texas Instruments

The TPS74601PBDRVR is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a stable and precise voltage supply. This compact integrated circuit is part of TI's extensive portfolio of power management solutions, and it is particularly suited for applications that require a low-power, high-accuracy voltage regulation.

With an input voltage range of 1.5V to 5.5V, the TPS74601PBDRVR is versatile for various systems, supporting a wide range of power sources. It is capable of providing an adjustable output voltage that can be set from 0.8V to 3.95V via external resistors, which allows designers to tailor the output to meet the specific needs of their application.

The device features a low dropout voltage, which enhances its efficiency by allowing it to operate closer to the input voltage. This characteristic is particularly beneficial in battery-operated devices where maximizing the usage of available power is crucial. Additionally, the TPS74601PBDRVR offers excellent load and line transient responses, ensuring a stable output even under dynamic load conditions.

The regulator is equipped with various protective features to ensure the longevity and reliability of both the regulator and the system it powers. These features include thermal shutdown, overcurrent protection, and undervoltage lockout, which collectively safeguard the device against a range of potential fault conditions.

One of the standout features of the TPS74601PBDRVR is its low quiescent current, which makes it an ideal choice for power-sensitive applications. This low idle current helps to extend the battery life of portable devices, making the regulator an excellent choice for mobile phones, wearable technology, and other portable electronics.

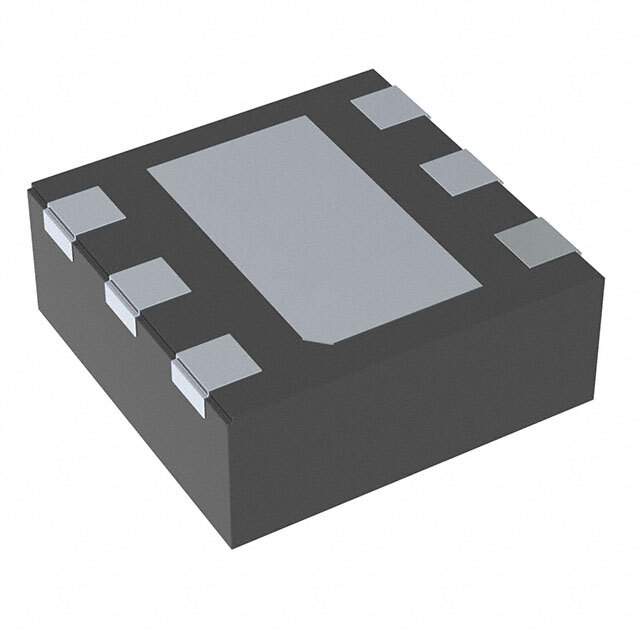

The TPS74601PBDRVR comes in a small 2.00 mm x 2.10 mm, 6-pin WSON package with an exposed thermal pad for enhanced thermal performance. This compact form factor allows it to be used in space-constrained applications without sacrificing power capability or thermal efficiency.

In summary, the TPS74601PBDRVR from Texas Instruments is a versatile, efficient, and reliable LDO voltage regulator that offers designers the flexibility and performance required for a wide range of applications.
