Overview of Texas Instruments TPS7A4001DGNR Voltage Regulator

The TPS7A4001DGNR from Texas Instruments is a robust, high-voltage, ultra-low-dropout (LDO) voltage regulator designed to provide precise voltage control in a variety of demanding applications. This component is particularly well-suited for systems that require a stable and reliable power supply, even under challenging conditions.

Key Features

• High Input Voltage: The TPS7A4001DGNR is capable of handling an input voltage range from 3V to 100V, which is exceptionally high for an LDO regulator. This makes it a versatile choice for systems that experience wide voltage fluctuations or that require a high input voltage.
• Low Dropout: Despite its high input voltage capability, this regulator offers an ultra-low dropout, which ensures efficient operation with minimal voltage loss between the input and output.
• Adjustable Output: The output voltage is adjustable from 1.21V to 92V, providing flexibility for various design requirements. This feature allows designers to fine-tune the voltage to match specific needs of the application.
• Thermal Protection: The TPS7A4001DGNR includes built-in thermal shutdown and overcurrent protection, safeguarding the device and the system from potential damage due to excessive heat or current.
• Stable Operation: With its excellent transient response and low output noise, this voltage regulator maintains stable operation, which is critical for sensitive electronics and precision applications.

Applications

The TPS7A4001DGNR is suitable for a wide range of applications, including but not limited to:

• Industrial control systems
• Automotive electronics
• Telecommunication equipment
• Power management for sensitive analog circuits
• Post-regulation for switching power supplies

Package and Quality

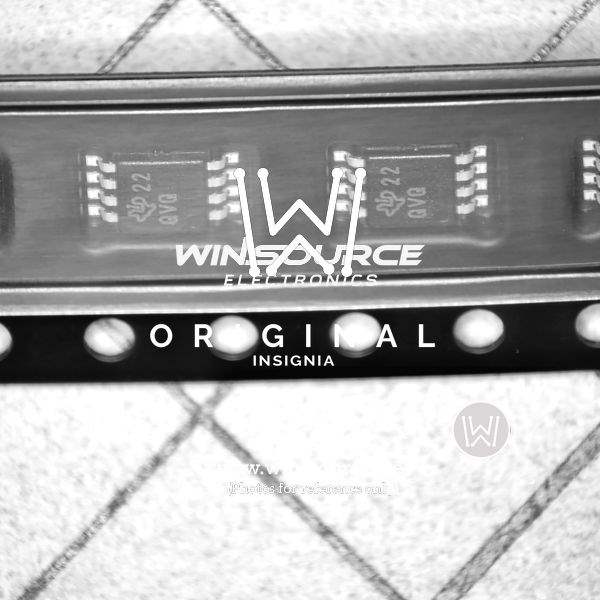

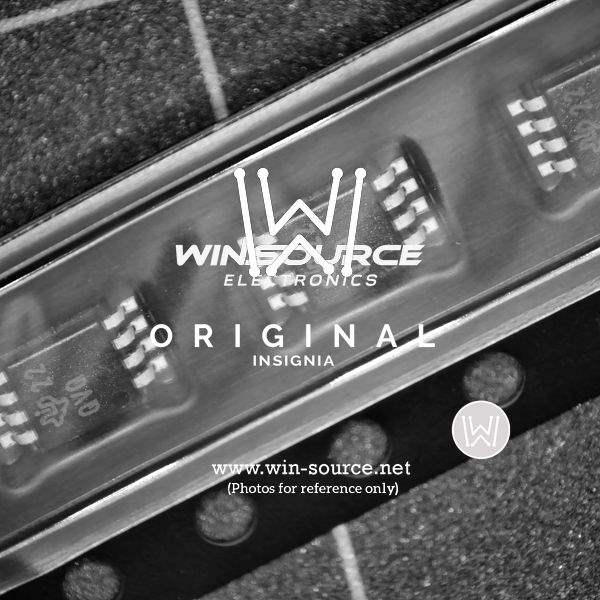

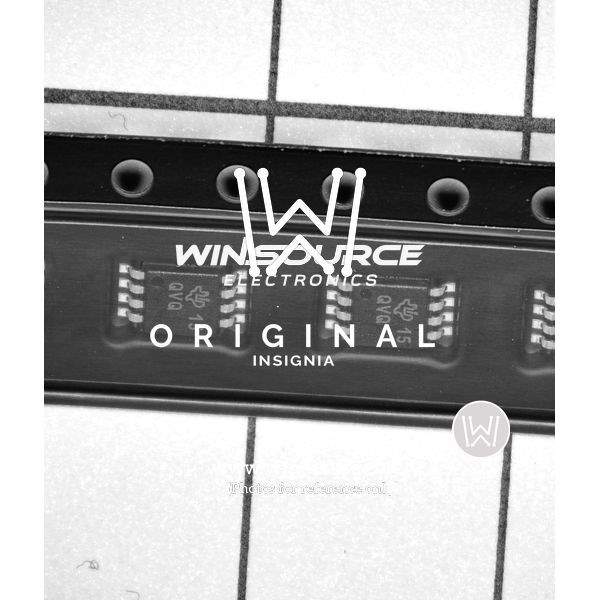

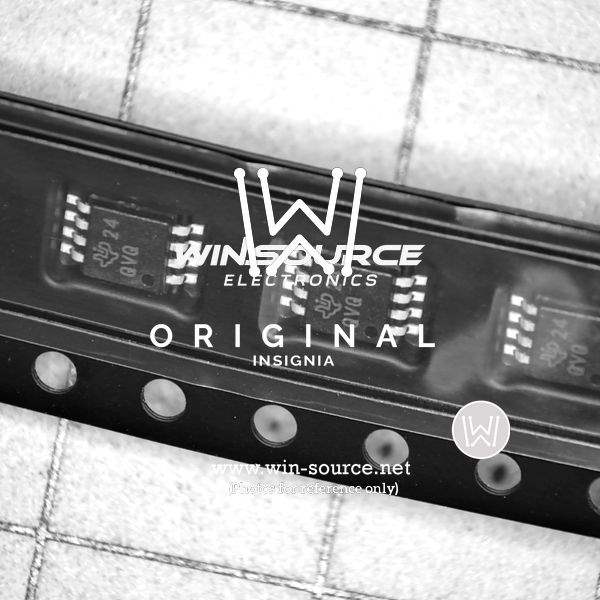

Encased in an 8-pin MSOP PowerPAD™ package, the TPS7A4001DGNR is designed for compact PCB layouts and efficient heat dissipation. Texas Instruments ensures high-quality manufacturing standards, making this product reliable for critical and long-term usage.

With its combination of high-voltage capability, precision regulation, and robust protection features, the TPS7A4001DGNR from Texas Instruments stands out as a powerful solution for advanced power regulation needs.
