Overview of Texas Instruments TPS7A8001DRBR

The TPS7A8001DRBR is a high-performance, low-dropout linear regulator (LDO) from Texas Instruments, designed to deliver outstanding regulation and transient response for sensitive applications. This device is part of the extensive TPS7A series, known for their reliability and precision in power management tasks. It is ideal for powering sensitive analog circuits such as RF and high-speed interfaces, as well as post-regulation for switching power supplies.

Key Features

• Output Voltage Range: The TPS7A8001DRBR offers an adjustable output voltage range from 0.8V to 5.0V, allowing designers to customize the output for specific circuit requirements.
• High Accuracy: This LDO provides excellent load and line regulation, maintaining a stable output voltage even under varying input voltage and load conditions, with an accuracy of 1% over the full temperature range.
• Low Dropout: The low dropout voltage of the regulator ensures efficient operation even when the input voltage is close to the output voltage, maximizing battery life for portable applications.
• High PSRR: With a high power supply rejection ratio (PSRR), the TPS7A8001DRBR effectively filters out supply noise, making it suitable for noise-sensitive applications such as audio and precision measurements.
• Thermal Protection: Built-in thermal shutdown and overcurrent protection safeguard the device and the downstream circuitry from damage due to excessive heat and load conditions.

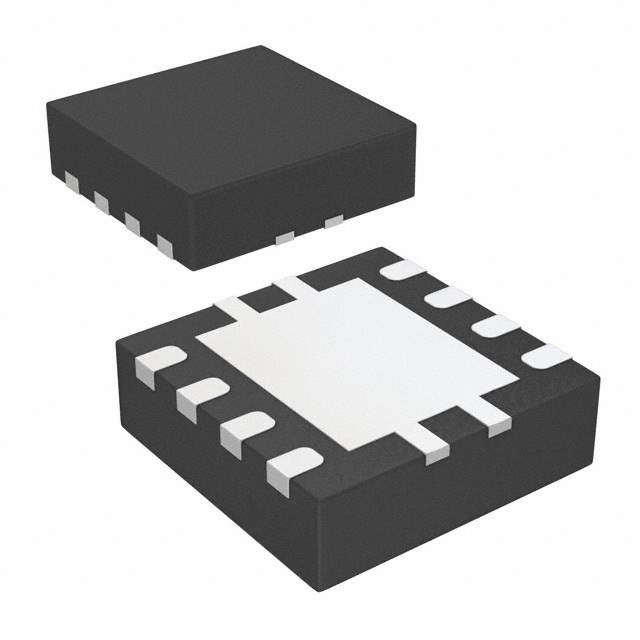

• Package and Footprint: Supplied in a compact 3mm x 3mm SON-8 (DRBR) package, the TPS7A8001DRBR is designed for space-constrained applications.

Applications

The versatility of the TPS7A8001DRBR makes it suitable for a wide range of applications, including:

• RF and wireless infrastructure
• High-speed data acquisition systems
• FPGA, DSP, and ASIC power supplies
• Medical equipment and instrumentation
• Portable and battery-powered devices

In summary, the TPS7A8001DRBR from Texas Instruments is a robust, versatile LDO regulator that provides stable, accurate, and efficient power delivery for a multitude of electronic applications, particularly where space and noise are critical considerations.
