The TPS84410RKGR is a high-performance, integrated power solution module from Texas Instruments, designed to simplify the power supply design for a wide range of applications. This compact module integrates a synchronous step-down converter with inductors and passives into a small QFN package, providing a highly efficient power management solution.

Key Features

• Integrated Solution: The TPS84410RKGR combines a DC/DC converter with the necessary passive components, providing a complete power supply in a single package. This integration reduces design complexity and saves board space.
• High Efficiency: With its synchronous step-down converter design, the module achieves high efficiency across a wide load range, which is crucial for thermal management and energy savings.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 6.0V, which allows for a high degree of flexibility to power various ICs and peripherals.
• Wide Input Voltage Range: The module supports an input voltage range from 4.5V to 17V, accommodating a variety of power sources and making it suitable for both industrial and consumer applications.

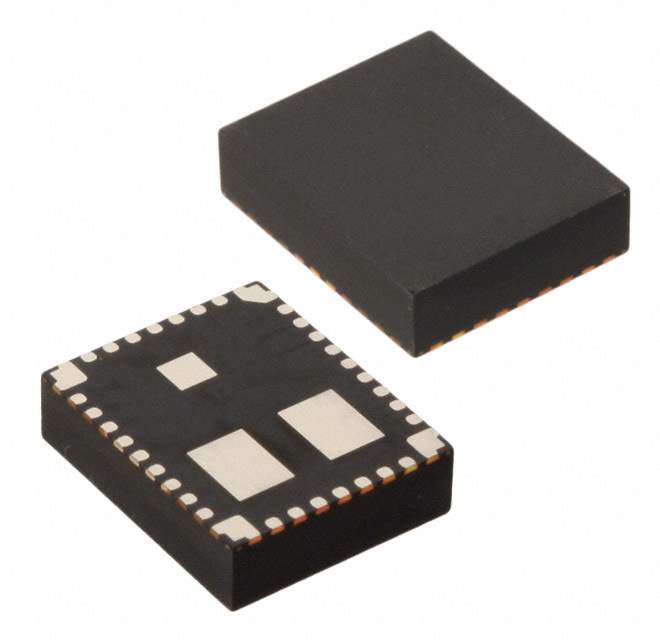

• Compact Size: The QFN package measures just 10.5mm x 9mm x 2.8mm, enabling designers to incorporate the module into space-constrained designs without compromising on performance.
• Thermal Performance: The TPS84410RKGR is designed for optimal thermal performance, featuring an exposed thermal pad for enhanced heat dissipation.
• Protection Features: The module includes over-current, over-voltage, under-voltage, and thermal shutdown protections, ensuring reliable operation and safeguarding against a range of potential fault conditions.

Applications

The versatile nature of the TPS84410RKGR makes it an ideal choice for powering FPGAs, DSPs, microprocessors, and other digital loads in various applications, including:

• Telecom and Networking Equipment
• Industrial Controls and Automation
• Test and Measurement Systems
• Portable and Battery-Powered Devices

Conclusion

The TPS84410RKGR from Texas Instruments represents a powerful, efficient, and space-saving power management solution that simplifies the design process for engineers. Its comprehensive feature set and wide applicability make it an excellent choice for a broad range of electronic devices.
