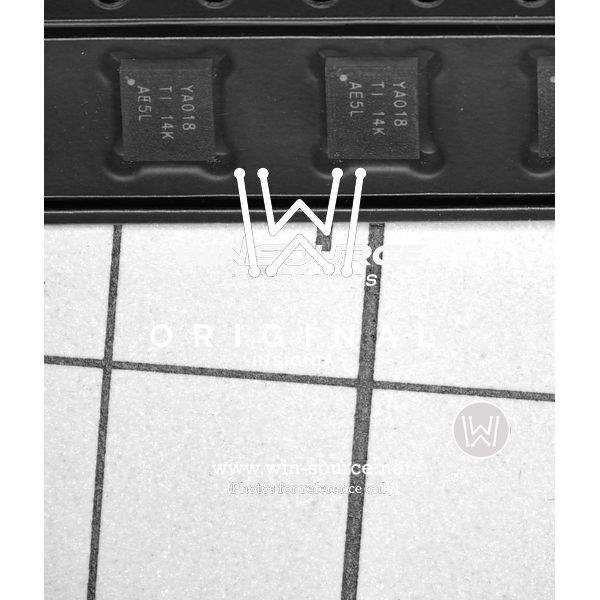

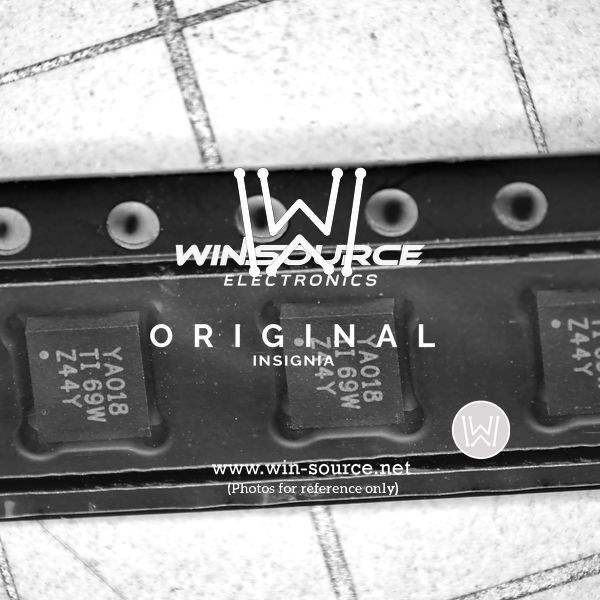

Same model may have multiple batches, images only for reference.

TS3A5018RGYR

Name: TS3A5018RGYR
Brand: Texas Instruments
SKU: 381339
Availability: InStock
Rating: 5 (746 reviews)

Part No	TS3A5018RGYR
Manufacturer	Texas Instruments
Catalog	Interface - Analog Switches, Multiplexers, Demultiplexers
Description	IC SWITCH QUAD SPDT 16VQFN
Datasheet	TS3A5018RGYR Datasheet
Sample
ECAD Module

	New List Existing List This product has been added to your List. List Name:

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $0.4006

Quantity

Unit Price

Ext. Price

90+

$0.5660

$50.940

220+

$0.4640

$102.080

335+

$0.4500

$150.750

460+

$0.4350

$200.100

595+

$0.4210

$250.495

800+

$0.3770

$301.600

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 89,500 pieces

MOQ: 90 pcs

Order Increment : 1 pcs

Qty:

*Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Switch Circuit	SPDT
Number of Circuits	4
Max On Resistance	10 Ohm
Channel-to-Channel Matching (ΔRon)	300 mOhm
Single Supply Voltage (V+)	1.65 V to 3.6 V
Max Switch Time (Ton,Toff)	8ns, 6.5ns
-3db Bandwidth	300MHz
Charge Injection	2pC
Channel Capacitance(CS off, CD off)	4.5pF, 9pF
Max Leakage Current (IS off)	100nA
Crosstalk	-48dB @ 10MHz
Temperature Range - Operating	-40°C to 85°C (TA)
Case / Package	16-VQFN (4x4)
Win Source Part Number	035072-TS3A5018RGYR
Is this a common-used part?	Yes
Popularity	High
Fake Threat In the Open Market	39 pct.
Supply and Demand Status	Limited

Description

Product Overview: TS3A5018RGYR

The TS3A5018RGYR is a high-quality quadruple single-pole double-throw (SPDT) analog switch from Texas Instruments, designed to provide precision and efficiency in a variety of electronic applications. This versatile component is ideal for signal routing in both analog and digital domains, making it a suitable choice for consumer, industrial, and communication devices.

Key Features

Low On-State Resistance (Ron): The device features a low Ron, which minimizes signal distortion and ensures efficient signal transmission, reducing power loss and improving overall performance.
Wide Operating Voltage Range: The TS3A5018RGYR operates over a broad voltage range from 2.3V to 3.6V, accommodating a variety of power supply levels and ensuring compatibility with numerous system designs.
Break-Before-Make Switching: This feature prevents signal overlap during channel transitioning, which is crucial for reducing crosstalk and maintaining signal integrity.
ESD Protection: The switch is equipped with Electrostatic Discharge (ESD) protection circuitry, safeguarding the device against damage from static electricity and enhancing its durability.
Low Power Consumption: It is designed for low power operation, which is essential for battery-powered devices where power conservation is critical.

Applications

The TS3A5018RGYR is suitable for a diverse range of applications including, but not limited to:

Audio and video signal routing
Data acquisition systems
Communication systems
Portable electronics
Test and measurement equipment

Package and Quality

The device is available in a compact RGY (VQFN) package, which is optimized for space-constrained applications. Texas Instruments is known for its commitment to quality, and the TS3A5018RGYR is no exception, meeting high standards for reliability and performance.

Ordering Information

To purchase or request samples of the TS3A5018RGYR, visit the Texas Instruments website or contact an authorized distributor. Ensure you have the correct part number for seamless ordering and delivery.
