The TS3DV421RUAR is a high-performance, low-power single-lane DisplayPort multiplexer/demultiplexer switch designed by Texas Instruments. This device is ideal for applications requiring high-resolution video data transfer between a source and a display. It is particularly well-suited for consumer electronics such as laptops, desktops, docking stations, monitors, and digital signage systems.

Key Features

• High Bandwidth: Supports a maximum data rate of 5.4 Gbps per lane, providing a total bandwidth of up to 21.6 Gbps, which is suitable for 4K video resolutions and beyond.
• DisplayPort 1.2 Compatible: Fully compliant with the DisplayPort 1.2 standard, ensuring interoperability with existing DisplayPort systems.
• Bi-Directional Operation: Capable of operating as either a multiplexer or a demultiplexer, offering flexibility in directing DisplayPort signals.
• Low Power Consumption: Designed for energy efficiency, which is critical for battery-powered devices.
• Enhanced ESD Protection: Integrated electrostatic discharge (ESD) protection circuitry guards against damage from static electricity, enhancing the durability of the product.

Applications

• Notebook and Desktop Computers
• Docking Stations
• Monitors and Digital Signage
• Home Theater Systems
• Professional AV Equipment

Technical Specifications

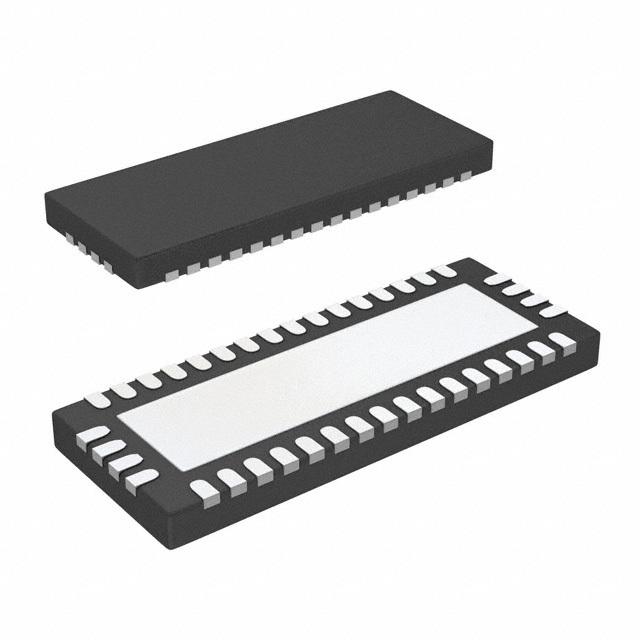

The TS3DV421RUAR is available in a compact QFN package and operates over a temperature range of -40°C to 85°C. It requires a single 3.3V power supply for operation and features low standby power consumption. The device's pin configuration is optimized for easy PCB routing, simplifying the design and integration process for engineers.

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TS3DV421RUAR is no exception. It is manufactured using advanced processes to ensure high performance and longevity, making it a trustworthy choice for critical video applications.
