The TSB41LV04APFP is a high-performance, quad-port physical layer (PHY) transceiver produced by Texas Instruments, specifically designed for use with the IEEE 1394a-2000 standard. This device is ideal for applications requiring high-speed serial data transmission and real-time data streaming, such as digital audio/video networks, computer peripherals, automotive entertainment systems, and consumer electronics.

Key Features

• Interface Compliance: Fully compliant with the IEEE 1394a-2000 standard, ensuring reliable communication at 100Mbits/s, 200Mbits/s, and 400Mbits/s data rates.
• Ports: Equipped with four independent ports, each capable of cable-powered operation, which increases flexibility and scalability in complex systems.
• Advanced Technology: Incorporates advanced features such as programmable power-down, ports that automatically switch to an internal termination resistor when disconnected, and bilingual operation.
• Cable Support: Supports beta-only or bilingual cables, providing versatility for a wide range of connection types.
• Hot-Plugging: Designed to support hot insertion and removal, facilitating easy system upgrades and maintenance without the need to power down.

Performance Enhancements

The TSB41LV04APFP is engineered with an emphasis on performance and reliability. It includes features such as an integrated arbitration and connection management logic, which streamlines data transfer processes and reduces the need for additional components. Moreover, the PHY transceiver has been optimized for low-power operation, making it suitable for portable and power-sensitive applications.

Applications

This transceiver is widely used across various industries due to its robust design and high-speed capabilities. Common applications include:

• Professional video and audio equipment
• PC peripherals and consumer electronics
• Automotive infotainment systems
• Industrial control systems
• Networking and telecommunications

Package and Quality

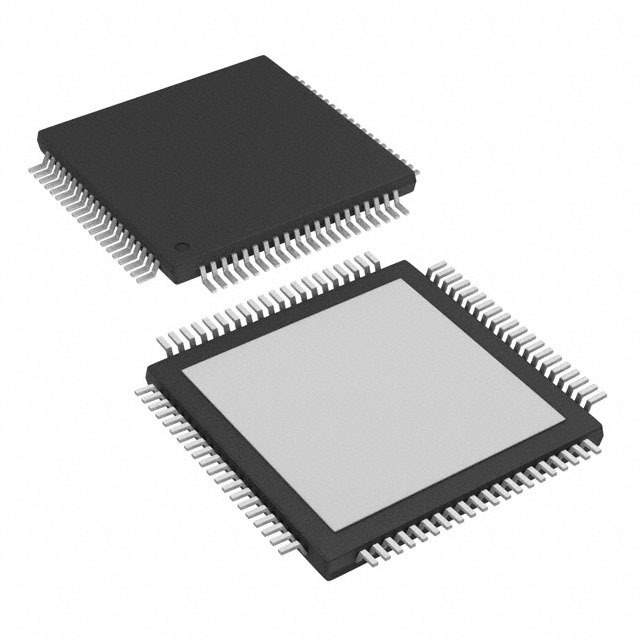

The TSB41LV04APFP is offered in a 80-TQFP (Thin Quad Flat Pack) package, ensuring a compact footprint for space-constrained applications. Texas Instruments is known for its commitment to quality, and this product is no exception, meeting stringent industry standards for performance and reliability.
