Product Overview: TXB0104ZXUR from Texas Instruments

The TXB0104ZXUR is a bidirectional voltage-level translator from Texas Instruments designed for multi-voltage digital system applications. This robust component is part of TI's TXB series and is engineered to provide seamless voltage level translation between different logic levels ranging from 1.2V to 3.6V on the A side and 1.65V to 5.5V on the B side. This allows for the interfacing of devices operating at different voltage levels within the same system without the risk of damaging the lower voltage device.

The TXB0104ZXUR features four bidirectional channels, making it a versatile solution for a variety of digital data transmission applications. It employs automatic direction sensing, which simplifies the design process as no direction control signal is needed. The device is suitable for use with open-drain and push-pull applications, providing a high degree of flexibility for system designers.

This level translator is designed with Texas Instruments' proprietary auto-direction sensing and pre-charged outputs, ensuring minimal signal distortion and reduced signal contention during level translation. It is also equipped with a low-power standby mode, making it an energy-efficient choice for battery-powered devices.

For protection, the TXB0104ZXUR incorporates over-voltage tolerant inputs, which allow it to withstand transient voltage spikes without sustaining damage. Additionally, the device is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

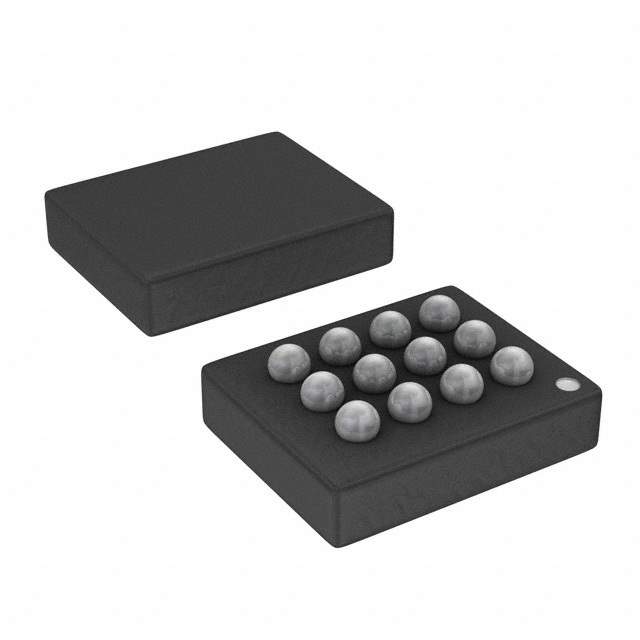

Packaged in a compact, surface-mount, lead-free 12-ball BGA (ZXU) package, the TXB0104ZXUR is optimized for space-constrained applications. Its small footprint makes it an ideal choice for portable electronics, mobile devices, and other applications where board space is at a premium.

In conclusion, the Texas Instruments TXB0104ZXUR voltage-level translator is a high-performance, versatile solution that caters to the needs of modern electronic systems requiring reliable logic level translation. Its robust feature set and compact design make it an excellent choice for designers looking to bridge the gap between different voltage domains efficiently and effectively.
