Product Overview: TXBN0304RUTR from Texas Instruments

The TXBN0304RUTR is a state-of-the-art bidirectional voltage-level translator from Texas Instruments, designed to provide seamless voltage level translation for multi-voltage systems. This device is an essential component for modern electronics that require the interfacing of peripherals or microcontrollers operating at different voltage levels.

Key Features

• Voltage Level Translation: The TXBN0304RUTR supports voltage level translation from as low as 1.2V to as high as 3.6V, making it versatile for various applications.
• High-Speed Data Transfer: With the capability to support up to 100 Mbps (megabits per second) for open-drain systems and up to 24 Mbps for push-pull systems, this device ensures high-speed data transfer between components.
• Bidirectional Operation: The bidirectional channels allow for easy communication in both directions, simplifying design and reducing component count.
• Auto-Direction Sensing: The device's automatic direction sensing feature eliminates the need for a direction control signal, streamlining the interface and reducing software complexity.
• Low Standby Current: Designed for energy efficiency, the TXBN0304RUTR offers a low standby current, making it suitable for battery-powered applications.

Applications

The TXBN0304RUTR is ideal for a wide range of applications, including but not limited to mobile devices, personal electronics, and industrial systems where interfacing between different voltage domains is required. Its small footprint and high-speed capabilities make it especially useful in space-constrained environments where performance cannot be compromised.

Package and Quality

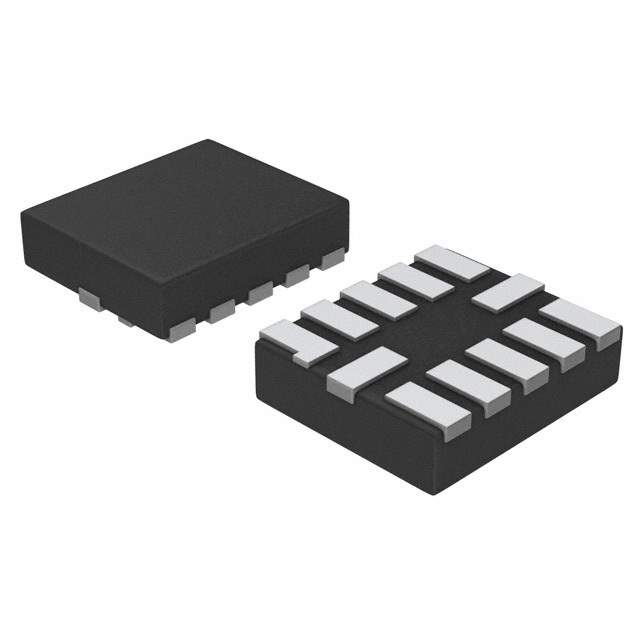

This device is offered in a compact QFN (Quad Flat No-leads) package, ensuring a minimal board space requirement. Texas Instruments is known for its commitment to quality, and the TXBN0304RUTR is no exception, meeting stringent industry standards for performance and reliability.
