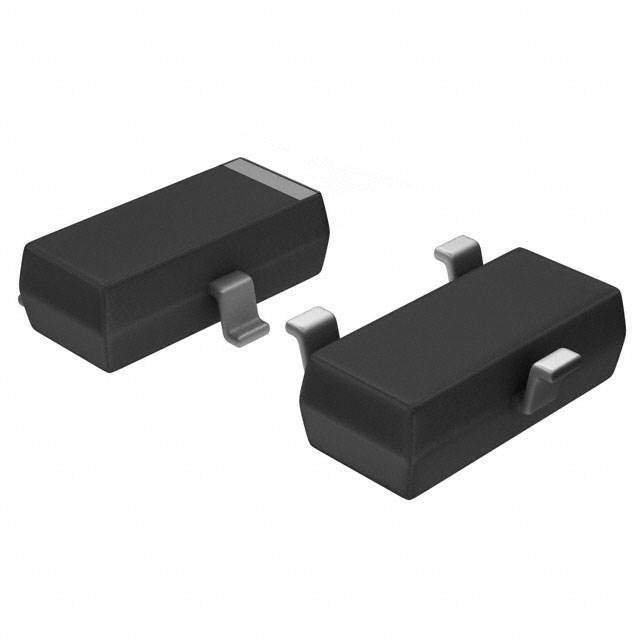

The 2SK209-GR is an N-channel junction field-effect transistor (JFET) manufactured by Toshiba Semiconductor and Storage. It is designed for low-noise amplifier applications and analog switching. The GR suffix typically indicates a specific Idss (drain-source saturation current) ranking within the 2SK209 series, ensuring consistent performance across different units.

Applications

• Low-Noise Amplifiers (LNAs): Commonly used in preamplifiers for audio equipment and RF receivers to amplify weak signals with minimal added noise.
• Audio Amplifiers: Employed in high-fidelity audio circuits to improve signal clarity and reduce distortion.
• Analog Switches: Suitable for use as analog switches in various electronic circuits due to their low on-resistance and fast switching speeds.
• Mixers: Utilized in mixer circuits to convert signals from one frequency to another with low noise.
• Instrumentation Amplifiers: Used in precision measurement equipment where low noise and high input impedance are critical.

Features

• N-Channel JFET: Offers high input impedance and low noise characteristics.
• Low Noise Figure: Minimizes noise interference, enhancing the clarity of amplified signals.
• High Input Impedance: Reduces loading effects on the signal source.
• Fast Switching Speed: Enables rapid switching in analog switch applications.
• GR Idss Ranking: Provides a specific range of drain-source saturation current for consistent performance.

Benefits

• Improved Signal Clarity: The low noise figure ensures that weak signals are amplified without significant degradation.
• High Fidelity Audio: Enhances the audio quality in high-end audio equipment.
• Accurate Measurements: Reduces errors in measurement instruments due to the low noise and high input impedance.
• Efficient Switching: Provides fast and efficient switching in analog circuits.
• Consistent Performance: The GR Idss ranking ensures uniformity in circuit behavior.

Additional Details

The 2SK209-GR JFET operates with a specified drain-source voltage (VDS) and gate-source voltage (VGS). It is crucial to adhere to these voltage limits to ensure proper operation and prevent damage. The drain current (ID) is an important parameter for circuit design, and the GR ranking provides a specific range for this current. The gate-source cutoff voltage (VGS(off)) is also a critical parameter, determining the point at which the transistor turns off. This JFET is often used in applications where minimizing signal distortion and maximizing signal-to-noise ratio are essential. Refer to the datasheet for detailed electrical characteristics, thermal properties, and recommended operating conditions.
