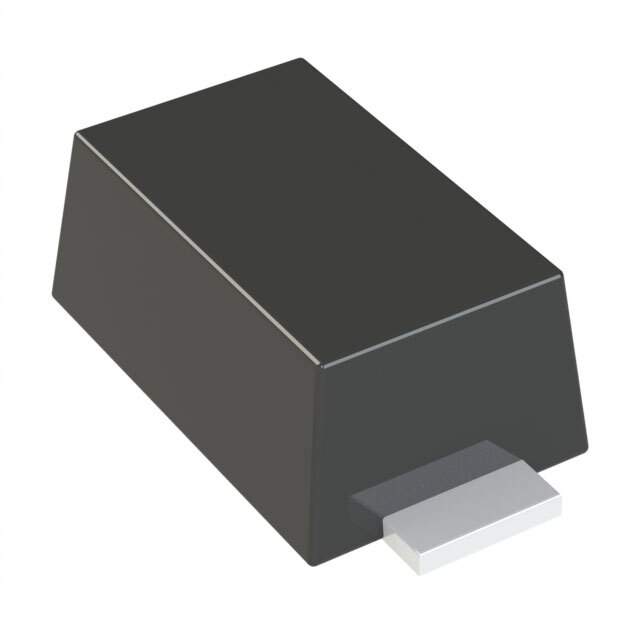

The CRS15(TE85L is a Schottky Barrier Diode manufactured by Toshiba Semiconductor and Storage. It is designed for high-speed switching applications and low forward voltage drop.

Applications:

• High-Frequency Rectification
• Switching Power Supplies
• Freewheeling Diodes
• Reverse Polarity Protection
• DC-DC Converters

Features:

• Low Forward Voltage Drop
• High-Speed Switching
• Small Surface Mount Package (likely SOD-882 or similar - confirm with datasheet)
• High Surge Current Capability
• RoHS Compliant

Benefits:

• Improved Efficiency in Power Conversion due to low forward voltage drop.
• Reduced Switching Losses due to fast recovery time.
• Space Saving design because of small package size.
• Increased system reliability due to high surge current withstanding capability.

Additional Details:

The CRS15(TE85L diode is designed to provide efficient rectification and switching in a variety of electronic circuits. The low forward voltage drop minimizes power losses, increasing overall system efficiency. The fast switching speed allows for operation at high frequencies, reducing switching losses. The small surface mount package allows for efficient use of PCB space. The TE85L suffix typically indicates the specific packaging and reel size for automated assembly processes; refer to the datasheet for exact specifications.

Typical specifications include a forward voltage (VF) of around 0.3-0.5V at a specified forward current (IF), and a reverse voltage (VR) rating that depends on the specific device variant. Always consult the datasheet for accurate values and derating curves. The diode’s ability to handle high surge currents makes it robust and reliable in demanding applications. Proper thermal management is essential to maintain the device within its safe operating area, especially at higher operating currents. The CRS15(TE85L is a suitable choice for high-speed, efficient rectification and switching applications where space is a constraint.
