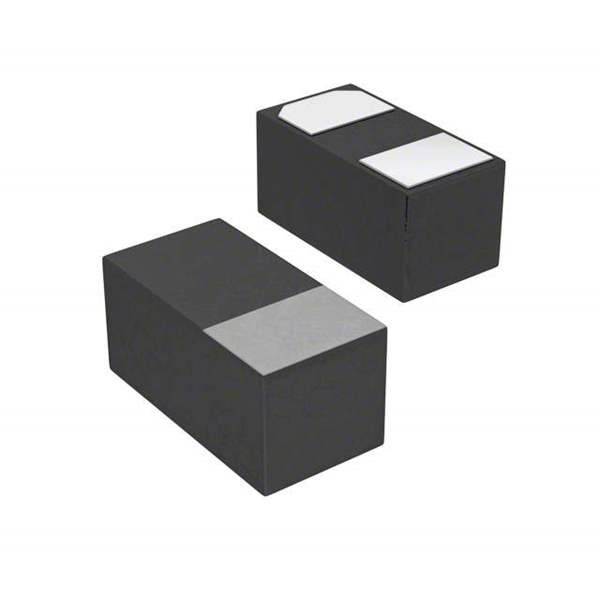

DSR01S30SC,L3F

Part No DSR01S30SC,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA SC2
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 620mV @ 100mA
Current - Reverse Leakage @ Vr 700μA @ 30V
Capacitance @ Vr, F 8.2pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SC2
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 105541-DSR01S30SC,L3F
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DSR01S30SC,L3F CAD Model

Description

DSR01S30SC,L3F

The DSR01S30SC,L3F is a specialized component designed for precision-driven applications, where accuracy and speed are paramount. Its refined architecture and robust design make it suitable for a range of critical projects.

  • Applications/Projects:
    • Precision instrumentation
    • Automated control systems
    • Military and defense applications
  • Features and Benefits:
    • Precision and Accuracy: Delivers consistent results, crucial for precision-oriented environments.
    • Reliable Performance: Ensures operational stability and consistency.
    • Innovative Design: Facilitates effective usage within high-stakes environments.

    This component aims to meet the stringent performance criteria of professional and industrial applications.
