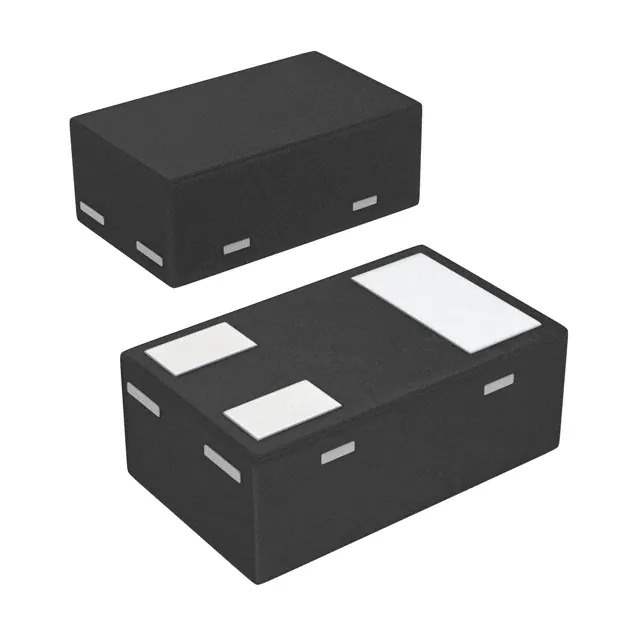

SSM3J56ACT,L3F

Name: SSM3J56ACT,L3F
Brand: Toshiba Semiconductor and Storage
SKU: 843751
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSM3J56ACT,L3F
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 1.4A CST3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSVI
Package	Tape & Reel
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	390mOhm @ 800mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.6 nC @ 4.5 V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	100 pF @ 10 V
Power Dissipation (Max)	500mW (Ta)
Temperature Range - Operating	150°C
Mounting Type	Surface Mount
Supplier Device Package	CST3
Package / Case	SC-101, SOT-883
Base Product Number	SSM3J56
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.21.0095
Win Source Part Number	843751-SSM3J56ACT,L3F
Ultra Librarian 3D Model	Ultra Librarian SSM3J56ACT,L3F CAD Model

Alternative Products

Description

The 843751-SSM3J56ACT,L3F is a P-Channel MOSFET transistor from Toshiba Semiconductor and Storage.

Series: U-MOSVI
Drain to Source Voltage (Vdss): 20V
Continuous Drain Current (Id) @ 25°C: 1.4A
On-Resistance (Rds On) @ 800mA, 4.5V: 390mOhm
Gate Charge (Qg) @ 4.5V: 1.6nC
Input Capacitance (Ciss) @ 10V: 100pF
Mounting Type: Surface Mount
Package: SC-101, SOT-883
Operating Temperature Range: -40°C to 150°C
Product Status: Active
