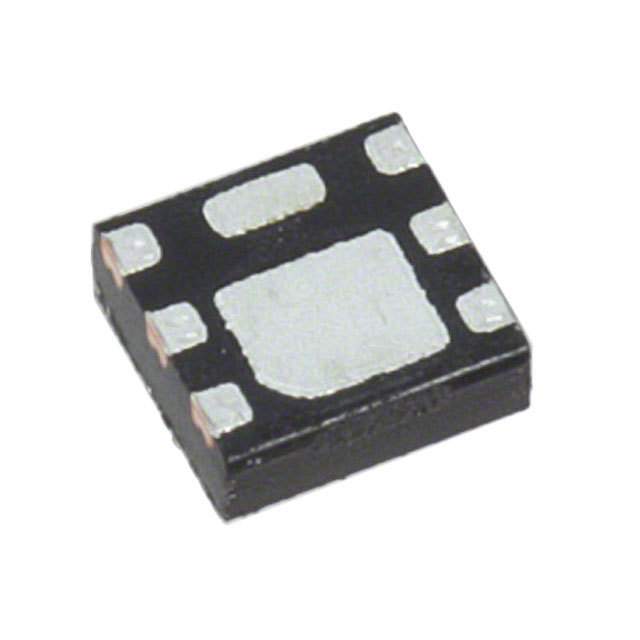

SSM6J502NU,LF(T Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

SSM6J502NU,LF(T

Part No SSM6J502NU,LF(T
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P CH 20V 6A 2-2AA1A
Datasheet
SSM6J502NU,LF(T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 24.8nC @ 4.5V
Max Input Capacitance 1800pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 1W (Ta)
Maximum Rds On at Id,Vgs 23.1 mOhm @ 4A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-UDFNB (2x2)
Dimension 6-WDFN Exposed Pad
Win Source Part Number 1102317-SSM6J502NU,LF(T
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SSM6J502NU,LF(T CAD Model

Description

The Toshiba Semiconductor and Storage SSM6J502NU,LF(T is a P-channel MOSFET transistor with a drain-source breakdown voltage of 20V and a continuous drain current of 6A @ 25°C.

  • Manufacturer: Toshiba Semiconductor and Storage
  • Channel Type: P-channel
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 6A @ 25°C
  • Gate-Source Threshold Voltage: 1V @ 1mA
  • Maximum Rds On: 23.1 mOhm @ 4A, 4.5V
  • Maximum Gate-Source Voltage: ±8V
  • Maximum Gate Charge: 24.8nC @ 4.5V
  • Input Capacitance: 1800pF @ 10V
  • Drive Voltage: 1.5V max Rds On, Min Rds On
  • Case/Package: 6-UDFNB (2x2)
  • Mounting: Surface mount using SMD (SMT) technology
  • Application: Ideal for use in discrete semiconductor products.
