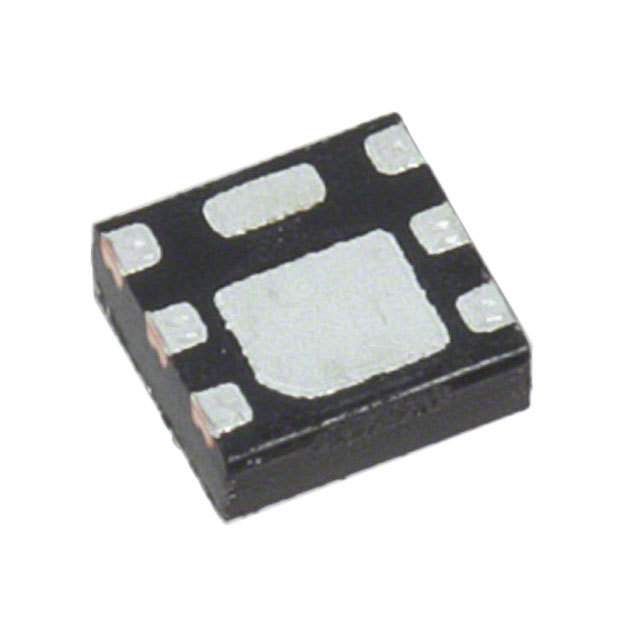

SSM6K504NU,LF

Name: SSM6K504NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: 341524
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM6K504NU,LF
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 9A UDFN6B
Datasheet	SSM6K504NU,LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.5V @ 100μA
Max Gate Charge	4.8nC @ 4.5V
Max Input Capacitance	620pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	1.25W (Ta)
Maximum Rds On at Id,Vgs	19.5 mOhm @ 4A, 10V
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	6-UDFNB (2x2)
Dimension	6-WDFN Exposed Pad
Win Source Part Number	098713-SSM6K504NU,LF
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian SSM6K504NU,LF CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage 098713-SSM6K504NU,LF is a N-channel MOSFET that is suitable for use in a variety of electronic applications.

Maximum Power Dissipation: 1.25W (Ta)
Continuous Drain Current @ 25°C: 9A (Ta)
Category: discrete semiconductor products
Packaging: reel - TR packaging
Maximum Rds On @ Id,Vgs: 19.5 mOhm @ 4A, 10V
Maximum Gate-Source Voltage: ±20V
Popularity: medium
Design: provide reliable performance and durability
