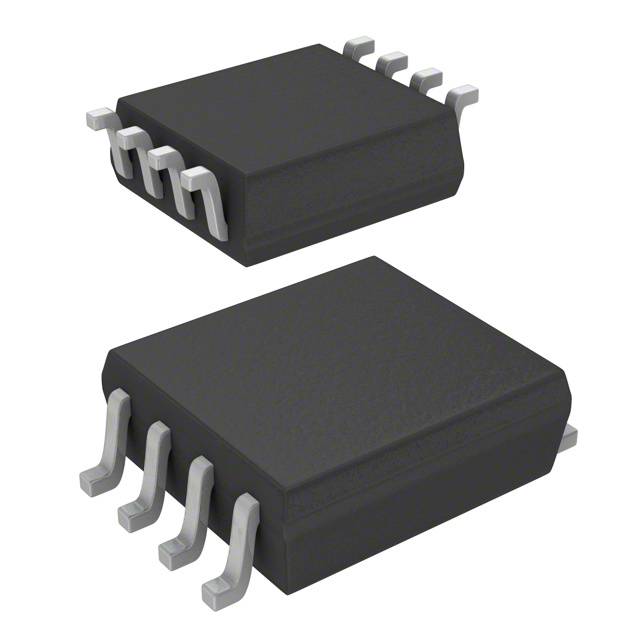

Same model may have multiple batches, images only for reference.

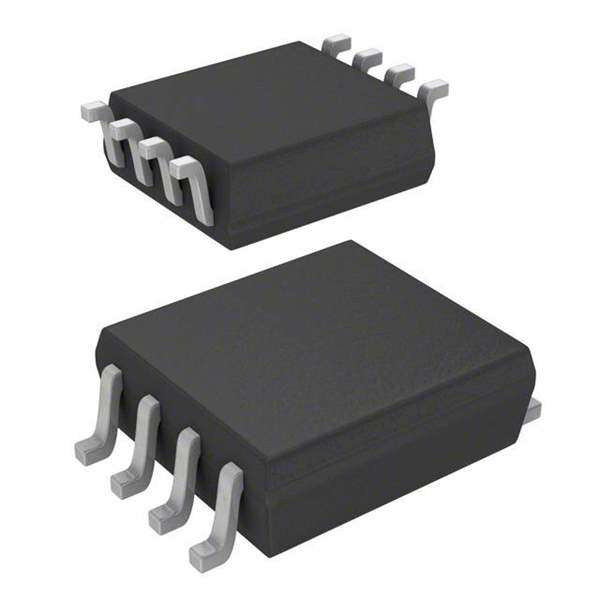

TC7WU04FU(TE12L,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TC7WU04FU(TE12L,F)

Part No TC7WU04FU(TE12L,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Logic - Gates and Inverters
Description Inverter IC 3 Channel SM8
Datasheet
TC7WU04FU(TE12L,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Logic - Gates and Inverters
Manufacturer Toshiba Semiconductor and Storage
Series TC7WU
Logic Type Inverter
Number of Circuits 3
Number of Inputs 3
Operating Supply Voltage 2 V ~ 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.3 V ~ 1.2 V
Logic Level - High 1.7 V ~ 4.8 V
Max Propagation Delay @ V, Max CL 10ns @ 6V, 50pF
Operating Temperature Range -40°C ~ 85°C
Mounting Style SMD/SMT
Manufacturer Device Package SM8
Package 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Win Source Part Number 215335-TC7WU04FU(TE12L,F)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TC7WU04FU(TE12L,F) CAD Model

Description

The Toshiba Semiconductor and Storage 366372 is a high-quality integrated circuit from the Logic - Gates and Inverters family, TC7WU series.

  • Logic Type: inverter
  • Number of Inputs: 3
  • Number of Circuits: 3
  • Maximum Propagation Delay: 10ns @ 6V, 50pF
  • Quiescent Current: 1μA
  • Current Rating for Output High and Low: 5.2mA, 5.2mA
  • Operating Supply Voltage: 2 V ~ 6 V
  • Popularity: medium
  • Supply and Demand Status: balanced
