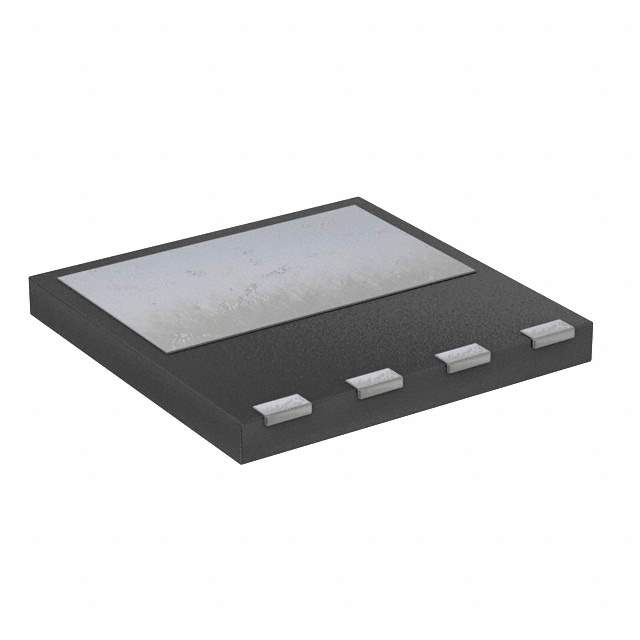

The TK10V60W is an N-channel MOSFET manufactured by Toshiba Semiconductor and Storage. It is designed for high-voltage, high-speed switching applications. This MOSFET features a low on-resistance, which minimizes power loss and improves efficiency. It also boasts a fast switching speed, making it suitable for applications requiring rapid switching operations.

Applications

• Switching power supplies
• DC-DC converters
• Motor control circuits
• Lighting ballasts
• High-frequency inverters

Features

• N-channel MOSFET
• Voltage Rating (Vds): 600V
• Low on-resistance (Rds(on))
• Fast switching speed
• Avalanche energy rated
• RoHS compliant

Benefits

• High efficiency due to low on-resistance
• Reduced power loss
• Fast switching performance
• Reliable operation
• Suitable for high-voltage applications

Additional Details

The TK10V60W is designed to handle high voltage and current levels, making it suitable for demanding power electronic applications. The low on-resistance of this MOSFET minimizes conduction losses, contributing to increased efficiency and reduced heat generation. Its fast switching speed allows for efficient operation at high frequencies. The avalanche energy rating indicates the device's ability to withstand transient voltage spikes. This device typically comes in a through-hole package such as a TO-220 or similar, enabling easy mounting and heat sinking. Proper application of the TK10V60W involves considering its voltage, current, and power ratings, as well as its thermal characteristics, to ensure safe and reliable operation. Careful selection of the gate drive circuitry is also important to achieve optimal switching performance. By implementing proper design practices, the TK10V60W can be effectively used in a variety of power electronic applications.
