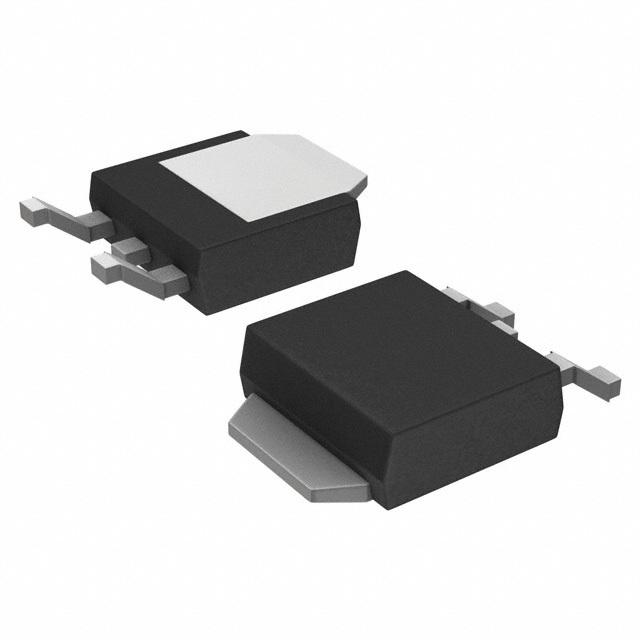

Same model may have multiple batches, images only for reference.
TK20P04M1,RQ(S Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TK20P04M1,RQ(S

Part No TK20P04M1,RQ(S
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 20A DPAK-3
Datasheet
TK20P04M1,RQ(S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.3V @ 100μA
Max Gate Charge 15nC @ 10V
Max Input Capacitance 985pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 27W (Tc)
Maximum Rds On at Id,Vgs 29 mOhm @ 10A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package DPAK
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 1107424-TK20P04M1,RQ(S
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TK20P04M1,RQ(S CAD Model

Description

The Toshiba Semiconductor and Storage 1107424-TK20P04M1,RQ(S is a MOSFET designed to provide high performance and reliability in various electronic devices.

  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Manufacturer: Toshiba Semiconductor and Storage
